EZL-159F-222C-175-C - Datasheet
MBA
Category Information

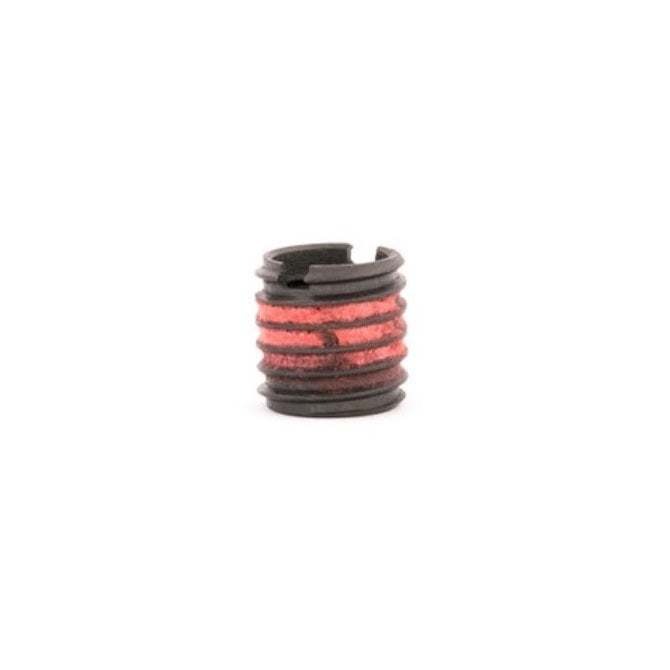

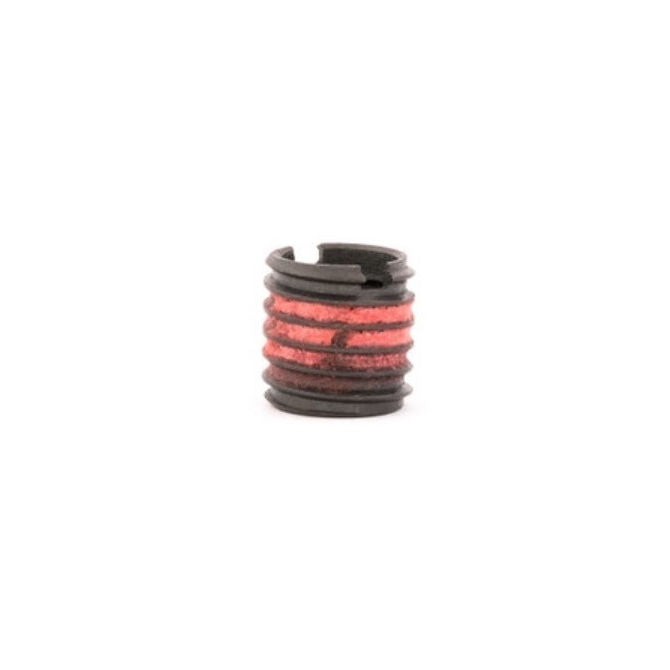

Thread Repair - Inserts - EZ-Lok - Solid Carbon SteelSolid Carbon Steel EZ-Lok Inserts Thread Repair. Easy to install with a standard tap, bolt and wrench.
- Automatic self locking pressure activated adhesive on external thread.
- Prevent or repair stripped threads
- No special tools required
- Install with a bolt and wrench
- Metric, UNC and UNF

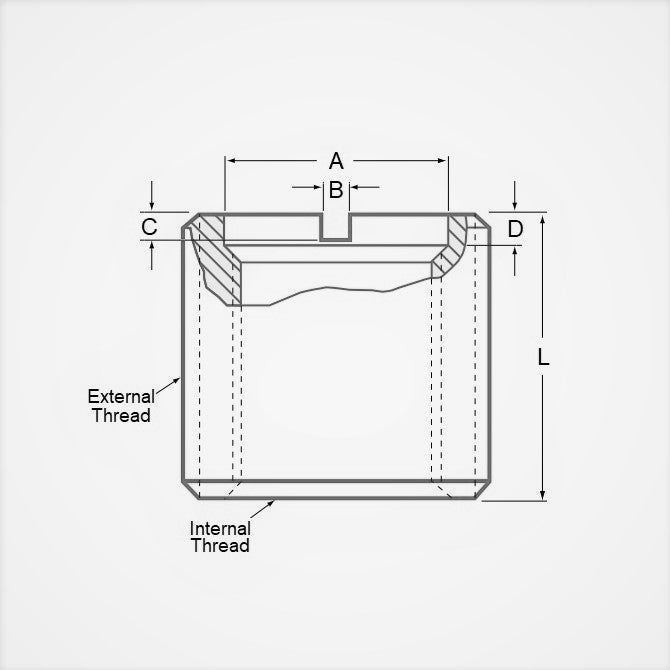

Product Data
- Internal Thread : 5/8-18 UNF (15.88mm)
- Length
17.45
mm
(Equiv. 0.687 in.) - External Tap Size 22.225 (7/8-9 UNC)
- Tapping Hole Size 19.45 mm
- Drive Tool 500-8
Product Compliance and Data
Additional Resources
Cross References
- EZ-LOK 329-10F
- 90248A087
- 32910F
