Miniature Bearings Australia
NT159F-NI-CZ - Datasheet
MBA
Category Information

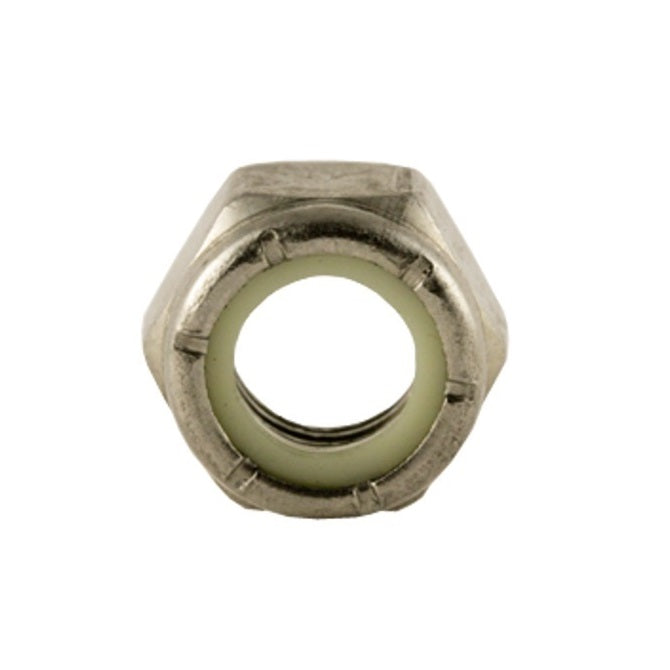

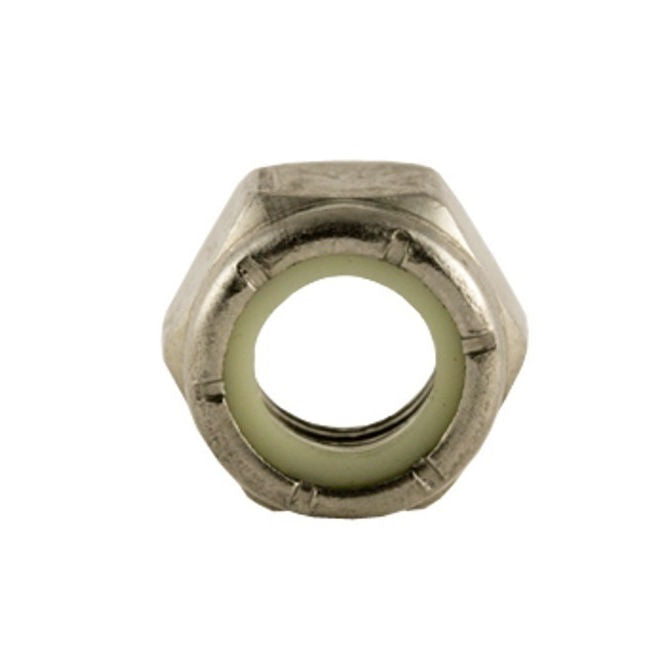

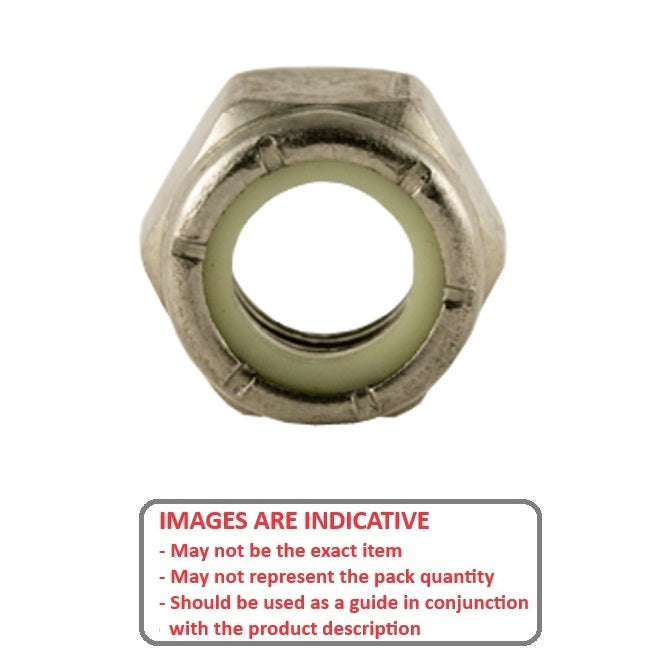

Nuts - Hexagonal - Nylon Insert - SteelSteel Nylon Insert Hexagonal Nuts. Nylon Insert for Locking. NylocTM and other brands.
- An expanded range may be available on special order. Please enquire.

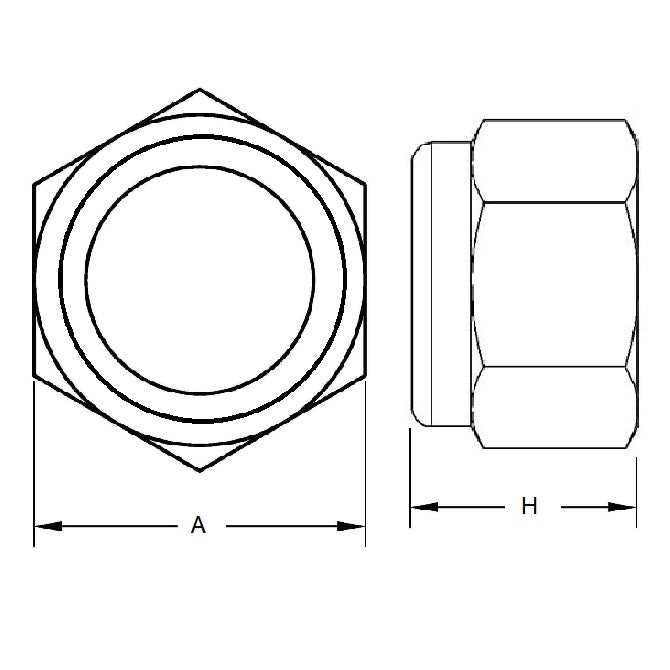

- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : 5/8-18 UNF (15.88mm)
- Type Standard
- Pitch 1.411 mm
- Threads Per Inch 18 TPI
- Material Steel (Din 985) Plated
Product Compliance and Data
Additional Resources
Cross References
- 90631A170
- ROCNIN30
- ROC-NIN-30
