W0050-FP-008-120-C - Datasheet

MBA

Category Information

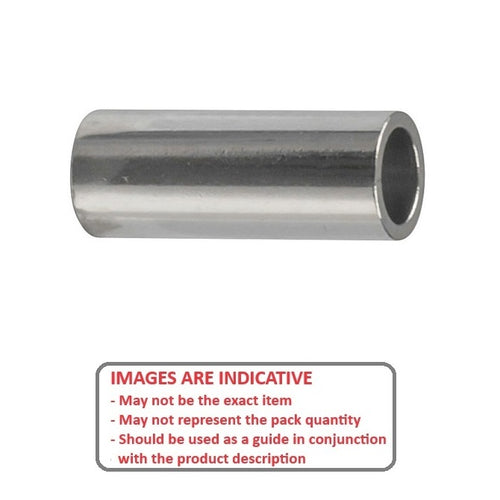

Spacers - Through Bore Round - Carbon Steel

Carbon Steel Through Bore Round Spacers. Shaft spacers - Steel

  • An expanded range may be available on special order. Please enquire.

Product Data

  • ID (d) : 5.000 mm + 0.1 / + 0.3
    (Equiv. 0.197 in.)
  • OD (D) 8.000 mm + 0.0 / - 0.2
    (Equiv. 0.315 in.)
  • Length (L) 12.000 mm + 0.0 / - 0.1
    (Equiv. 0.472 in.)
  • Material Carbon Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-KNCLA5-8-12
  • CKNCLA5812
View full details

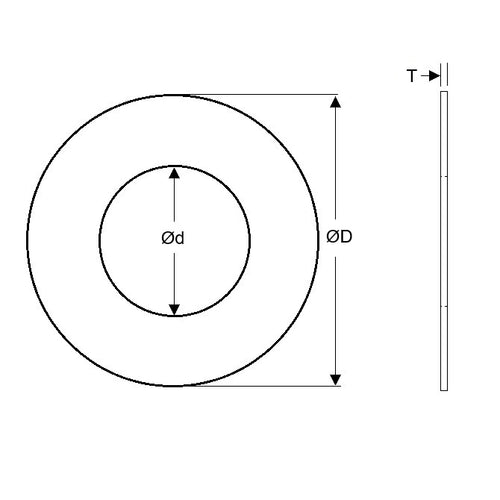

W0050-FP-008-120-CDiagramW0050-FP-008-120-CImage
