EB-305RS - Datasheet

MBA

Category Information

Eye Bolts - Bent - Steel

Steel Bent Eye Bolts. Not recommended for lifting.

  • Carbon steel zinc plated.
  • Complete with nut.
  • Rolled threads.

Product Data

  • Thread : 5/8-11 UNC (15.88mm)
  • Overall Length 203.200 mm
    (Equiv. 8 in.)
  • Shank Length 44.450 mm
    (Equiv. 1.75 in.)
  • Thread Length 15.875 mm
  • Eye Inside Diameter 15.875 mm
Country of Origin: US

Product Compliance and Data

Additional Resources

    View full details

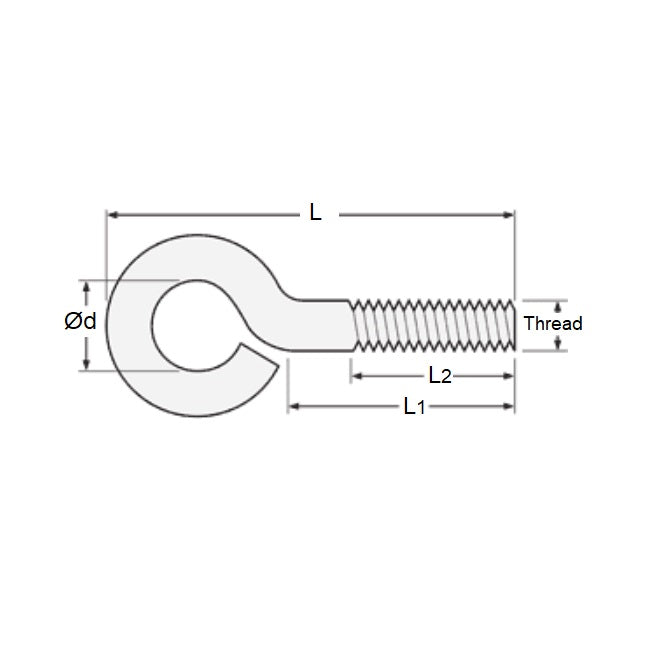

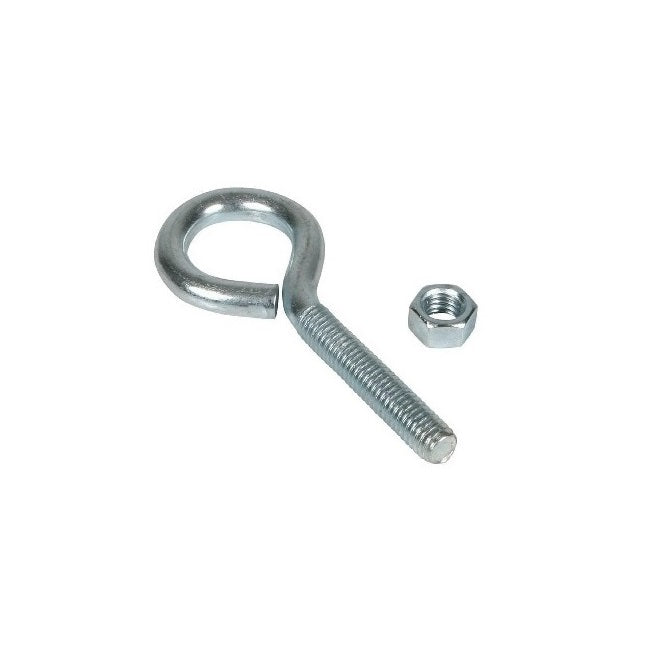

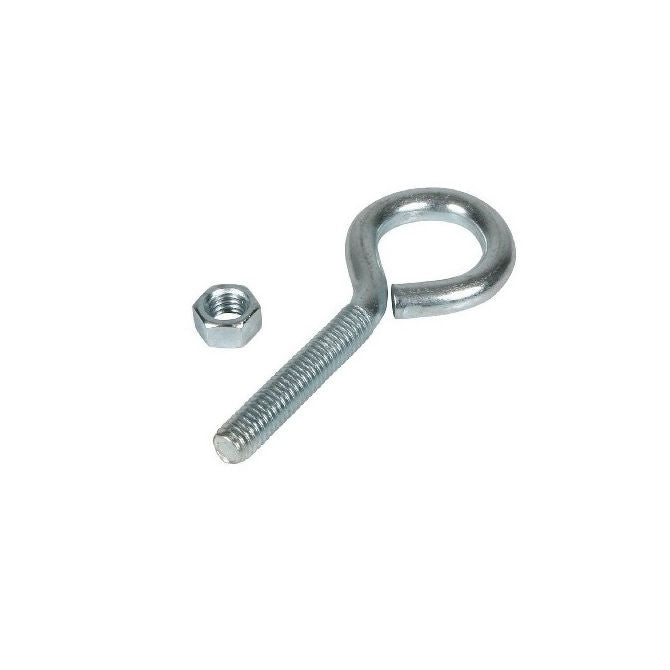

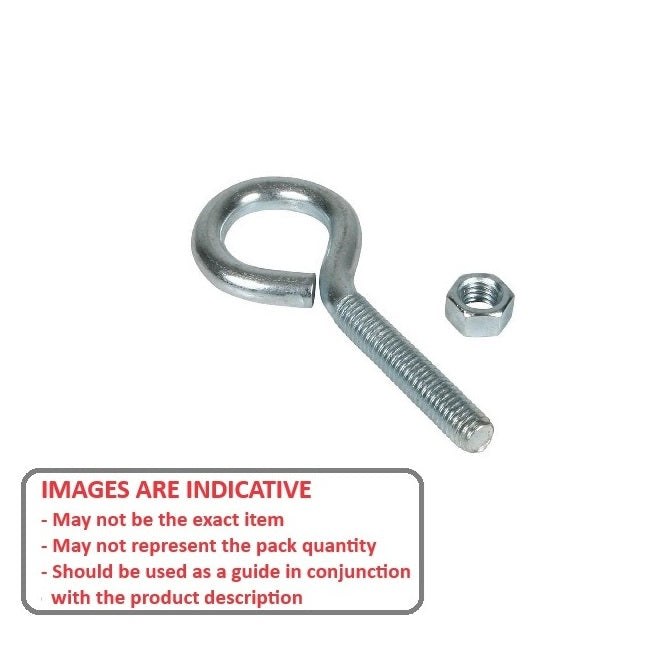

    EB-305RSDiagramEB-305RSImage
