KF159C-080-4L-P - Datasheet
MBA
Category Information

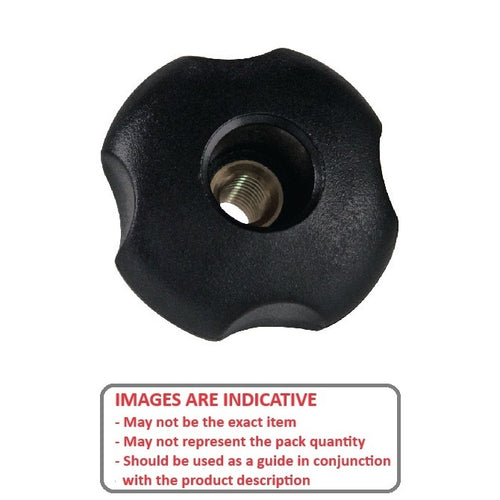

Knobs - Lobe - Four Lobe - Female - Through HoleThrough Hole Female Four Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 5/8-11 UNC (15.88mm)

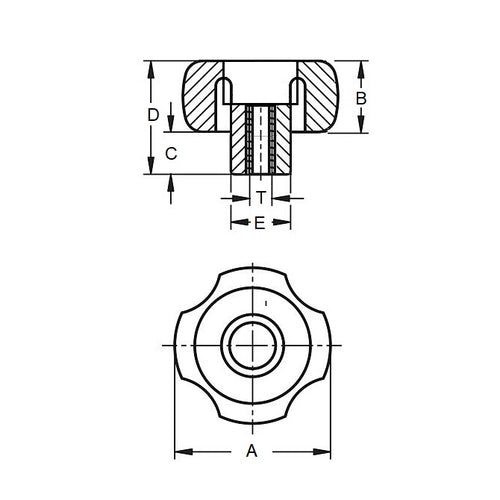

- Head Diameter (A)
80.01
mm
(Equiv. 3.15 in.) - Thread Length
23.9
mm
(Equiv. 0.941 in.) - Colour Black
- Hub Diameter (E) 30.99 mm
- Hub Length (C) 18.03 mm
- Knob Height (D) 40.89 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- JCL185
- JCL-185
