KF159C-080-4L - Datasheet

MBA

Category Information

Knobs - Lobe - Four Lobe - Female - Standard

Standard Female Four Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 5/8-11 UNC (15.88mm)
  • Head Diameter (A) 80.01 mm
    (Equiv. 3.15 in.)
  • Thread Length 23.9 mm
    (Equiv. 0.941 in.)
  • Colour Black
  • Hub Diameter (C) 30.99 mm
  • Hub Length (D) 18.03 mm
  • Knob Height (B) 40.89 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • JCL125
  • JCL-125
View full details

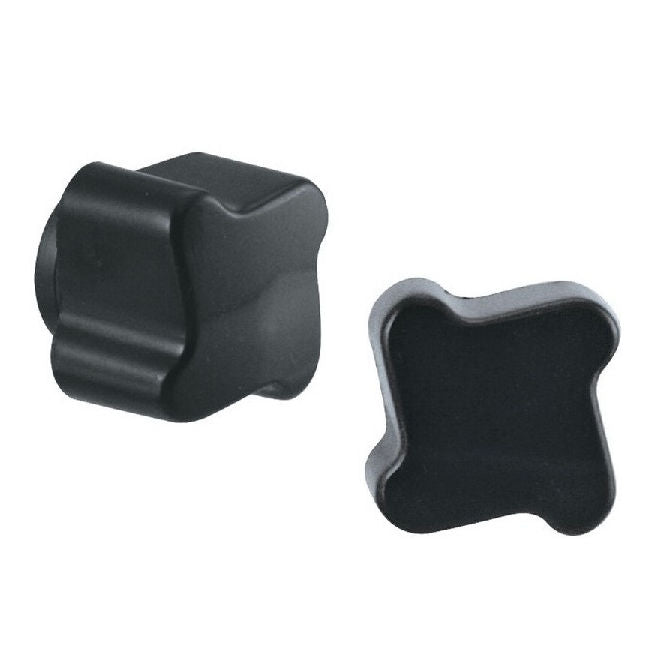

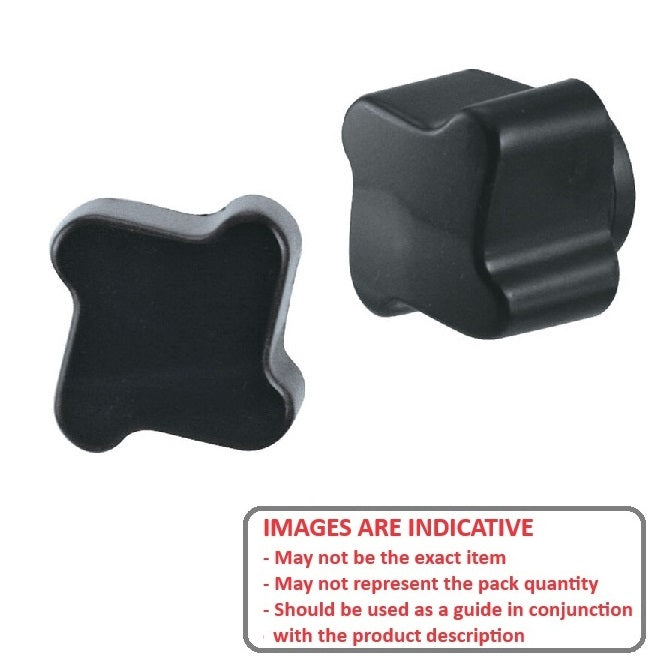

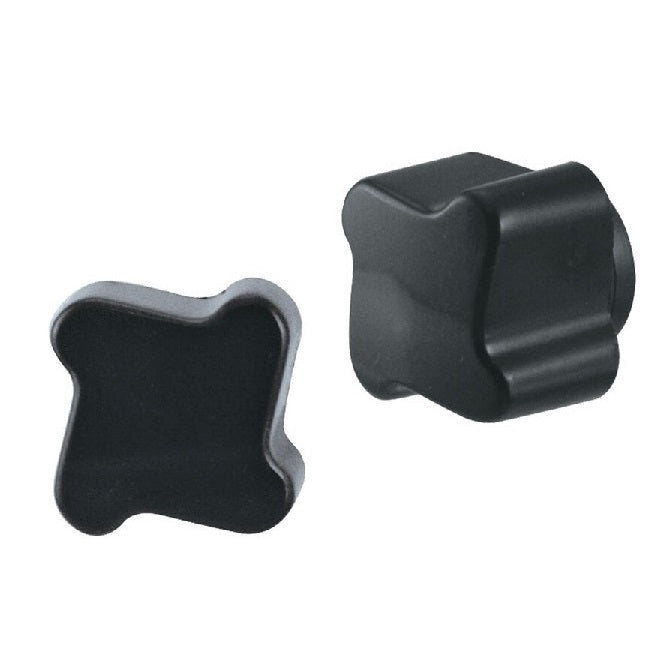

KF159C-080-4LDiagramKF159C-080-4LImage
