SC159C-076-SQ-C-CP - Datasheet
MBA
Category Information

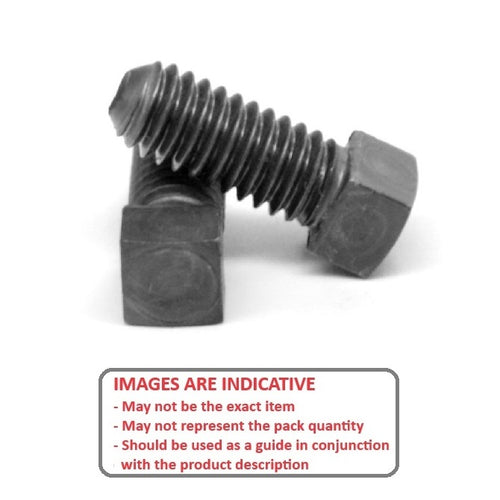

Screws - Set - Cup Point - Square HeadSquare Head Cup Point Set Screws. Grade 8 hreat treated alloy steel. All screws are threaded to the head.
Product Data

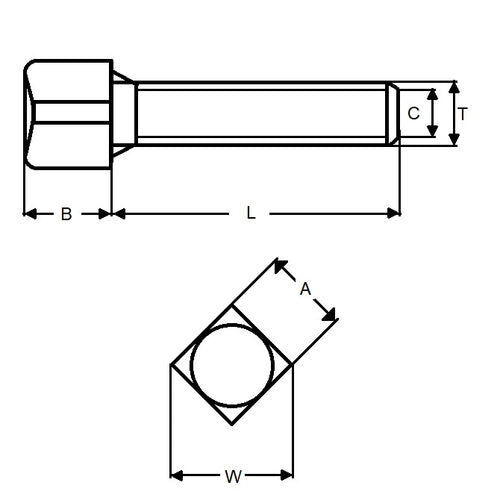

- Thread : 5/8-11 UNC (15.88mm)
- Thread Length (L)
76.200
mm
(Equiv. 3 in.) - Head Flats (A)
15.870
mm
(Equiv. 0.625 in.) - Head Height (B) 29.360 mm
- C 7.920 mm
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- MAC185
- MAC-185
