NT159C-HH-S4 - Datasheet
Brighton Best
Category Information

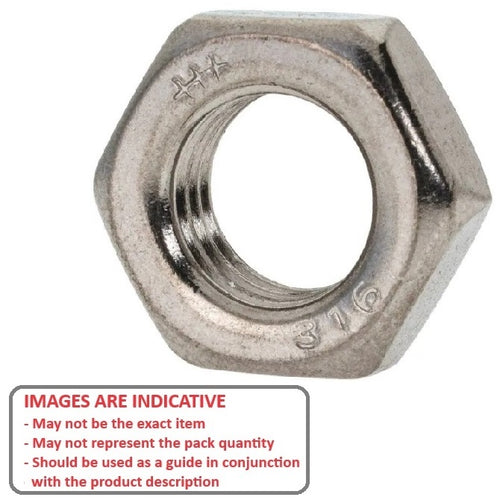

Nuts - Hexagonal - Half - Stainless SteelStainless Steel Half Hexagonal Nuts. UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : 5/8-11 UNC (15.88mm)
- Thickness (H)
7.2
mm
(Equiv. 0.283 in.) - Across Flats (A/F)
23.81
mm
(Equiv. 0.937 in.) - Type Half Nut
- Pitch 2.309 mm
- Threads Per Inch 11 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 766170
- 91847A540
