SK159C-045-SK-CZ - Datasheet
Brighton Best
Category Information

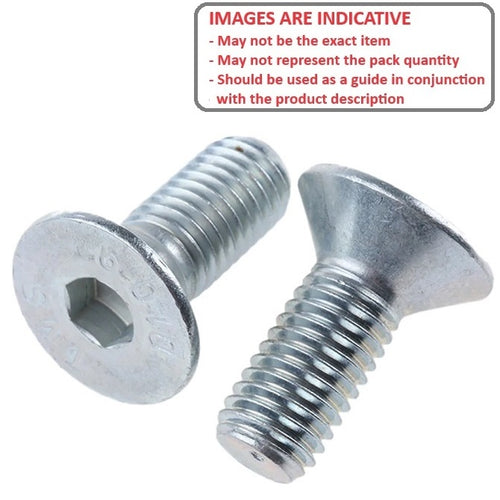

Screws - Countersunk - Socket - Steel - Zinc PlatedZinc Plated Steel Socket Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7991.
- Rc38-42
- ASTM F835 - alloy steel. ISO 10642.
- The thread length indicated is the minimum. Some batches may be produced with longer threaded sections or even full threaded shanks.
Product Data
- Thread Size (C) : 5/8-11 UNC (15.88mm)
- Overall Length (L)
44.5
mm
+ 0.0 / - 1.55
(Equiv. 1.752 in.) - Material Zinc Plated Steel
- Max Head Diameter 30.2 mm
- Max Head Height 8.2 mm
- Minimum Thread Length (l) Not Specified mm
- Hex Key (s) 9.53 (3/8) mm
- Countersunk Angle 82 °
- Pitch 2.309 mm
- Threads Per Inch 11 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 875343
- 91263A232
