NT159C-QH-CB - Datasheet
MBA
Category Information

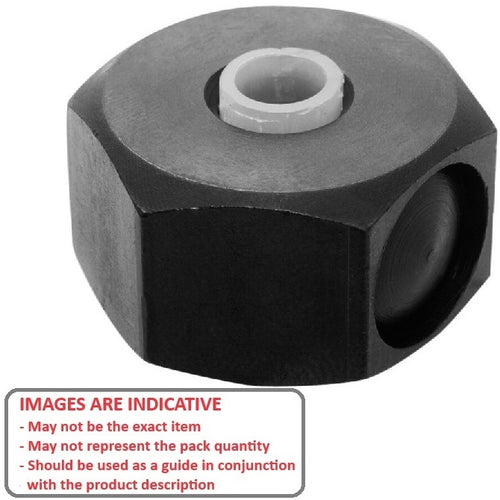

Nuts - Quick ReleaseQuick Release Nuts. UNC
- Carbon steel, black oxide finish.

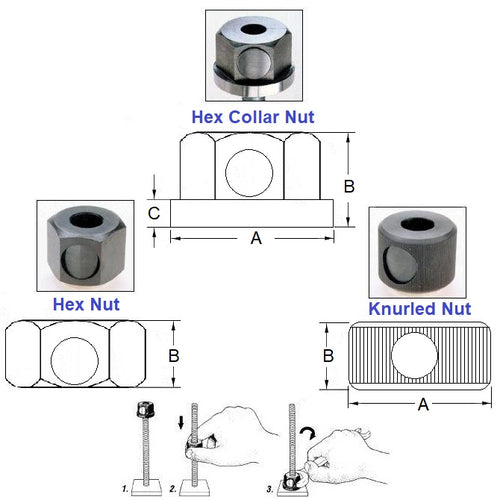

- Button Thread nuts allow quick fixturing on long thread lengths.
- Simply press the button and the threads are disengaged to allow easy movement up or down the screw.
- Release the button and the threads engage for normal turning.
Product Data
- Thread Size : 5/8-11 UNC (15.88mm)
- Across Flats (A/F)
34.92
mm
(Equiv. 1.375 in.) - Type Hex
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- BCL125
- BCL-125
