SUS815RS - Datasheet

MBA

Category Information

Threaded Rod - Driver Studs

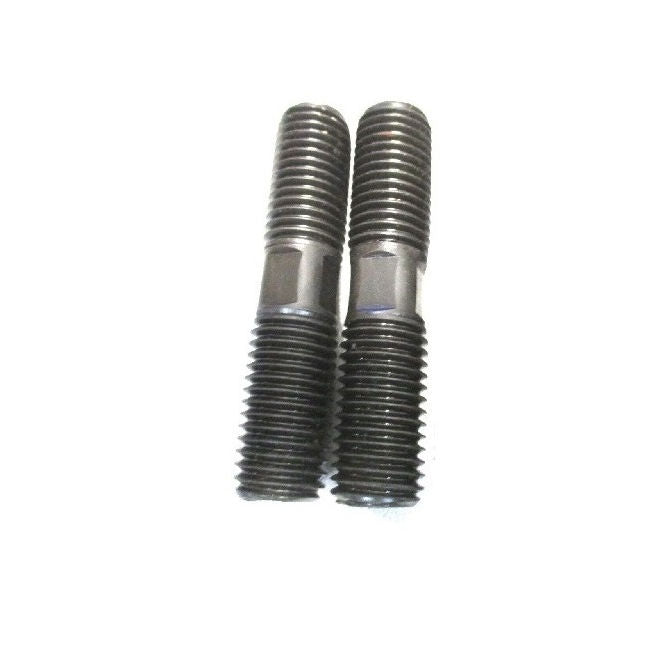

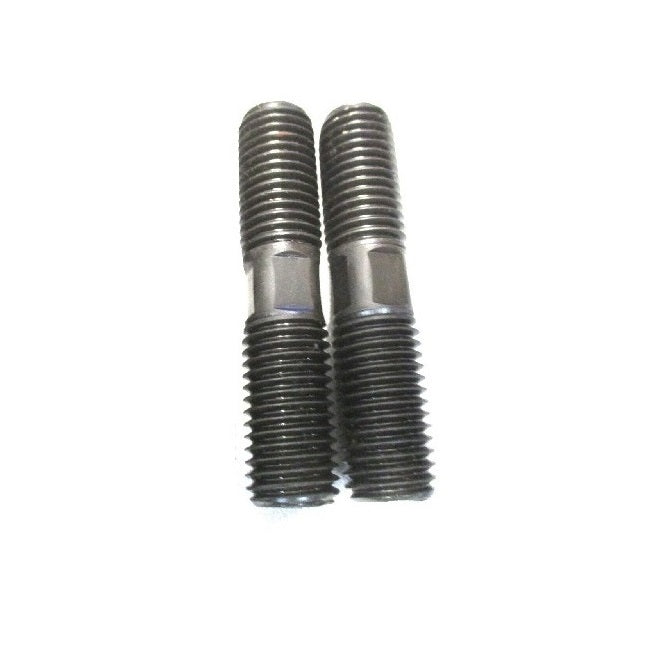

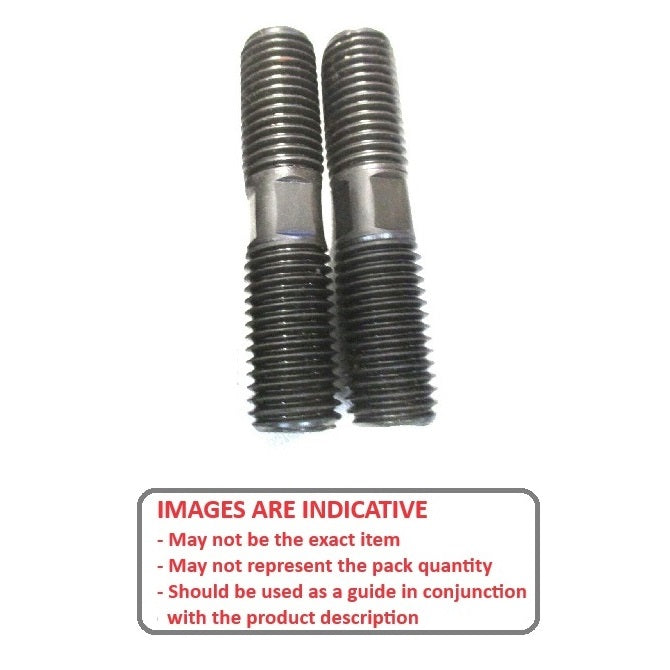

Driver Studs Threaded Rod. Medium carbon steel with black oxide finish.

  • Threaded metal rods that have threads on both ends, used as a specialized type of fastener.
  • Used in applications such as engines to join components like gaskets and covers, acting as guide pins for alignment and providing consistent clamping loads.
  • With wrench flats in the centre.
  • Tensile strength 125,000 PSI (minimum)

Product Data

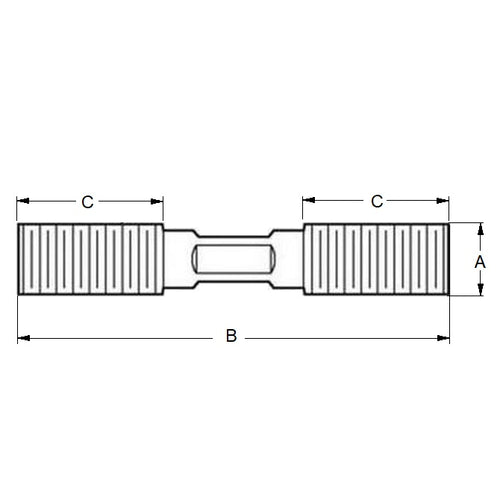

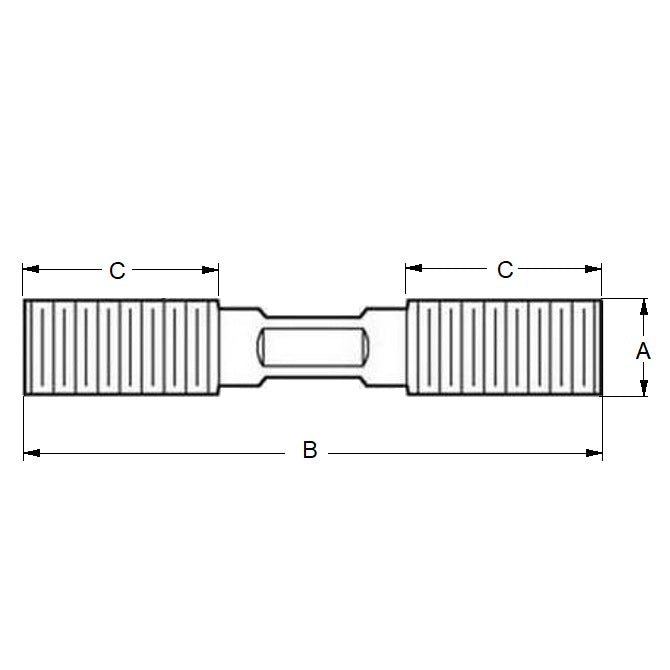

  • Thread : 5/8-11 UNC (15.88mm)
  • Length (B) 228.60 mm
    (Equiv. 9 in.)
  • Thread Length (C) 44.45
  • Material Carbon Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • SUS815
    • SUS-815
