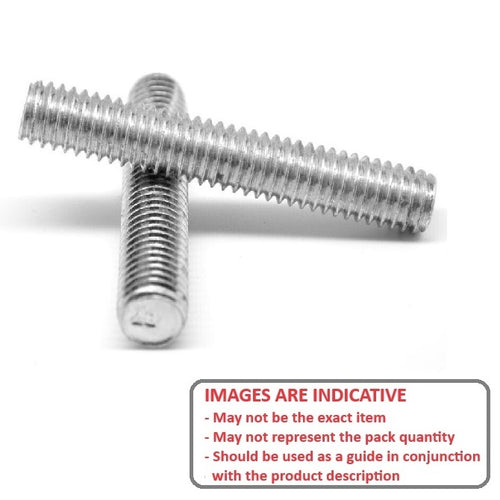

SUS26RS - Datasheet

MBA

Category Information

Threaded Rod - Clamping Studs

Clamping Studs Threaded Rod. Steel and 303 stainless steel.

  • Threaded metal rods or posts that serve as a crucial component in workholding systems to securely fasten workpieces, fixtures, and machinery like vices to a table or machine bed.
  • Used in conjunction with T-nuts, flange nuts, or specialized zero-point clamping systems, provide high-precision, repeatable, and fast setups by creating a secure point of contact and allowing for quick adjustments.
  • Metric and imperial sizes.
  • Yield strength 100,000 PSI. Tensile strength 125,000 PSI

Product Data

  • Thread : 5/8-11 UNC (15.88mm)

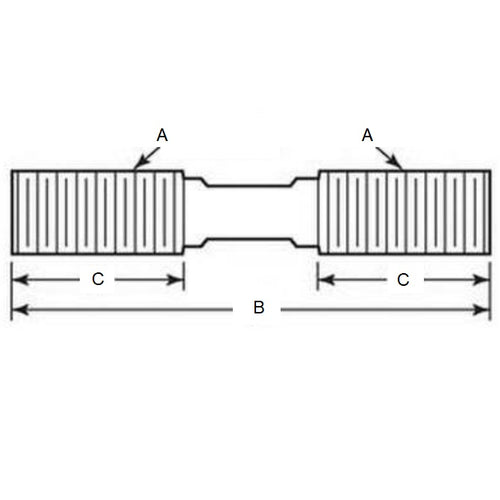

  • Length (L) 152.40 mm
    (Equiv. 6 in.)
  • Thread Length (A) 44.45
  • Thread Length (B) 44.45 mm
  • Hardness ASTM A 311 Class B
  • Material Stress Proof Steel to ASTMA311 Class B
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • SUS26
    • SUS-26
