SC159C-114-H-N - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

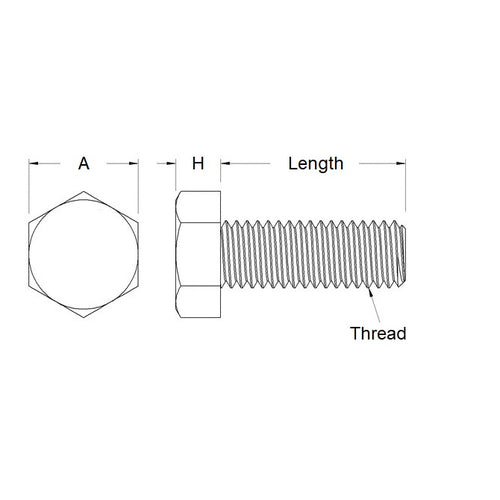

• Thread Size (C) : 5/8-11 UNC (15.88mm)
• Thread Length (L) 114.3 mm
  (Equiv. 4.5 in.)
• Material Nylon (Zytel 101)
• Max Head Diameter 23.83 mm
• Max Head Height 10.24 mm

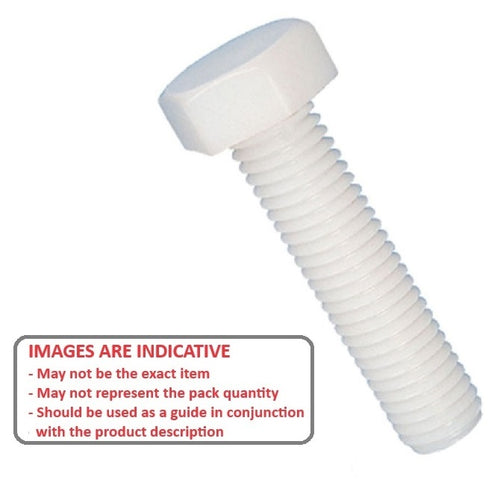

• Head Type Hex Head - No Slots
• Pitch 2.309 mm
• Threads Per Inch 11 TPI
• Material Nylon (Zytel 101)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• PDF Screws Catalogue

• Washers

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• A 9P54-621172
• A9P54621172
• A9P54-621172
