SUS807RS - Datasheet
MBA
Category Information

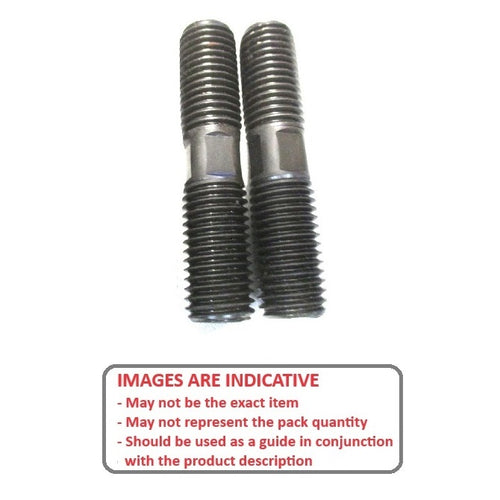

Threaded Rod - Driver StudsDriver Studs Threaded Rod. Medium carbon steel with black oxide finish.
- Threaded metal rods that have threads on both ends, used as a specialized type of fastener.
- Used in applications such as engines to join components like gaskets and covers, acting as guide pins for alignment and providing consistent clamping loads.
- With wrench flats in the centre.
- Tensile strength 125,000 PSI (minimum)
Product Data

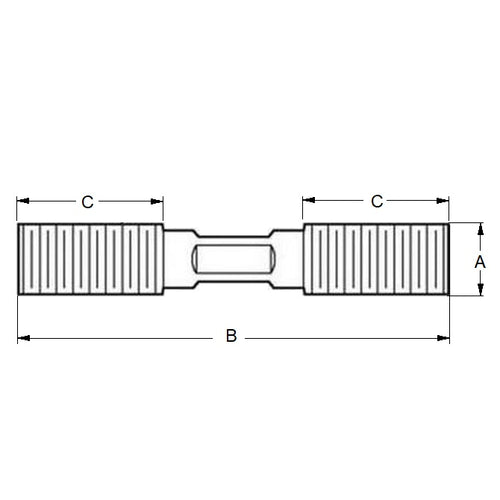

- Thread : 5/8-11 UNC (15.88mm)
- Length (B)
114.30
mm
(Equiv. 4.5 in.) - Thread Length (C) 44.45
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- SUS807
- SUS-807
