EB-4RS - Datasheet
MBA
Category Information

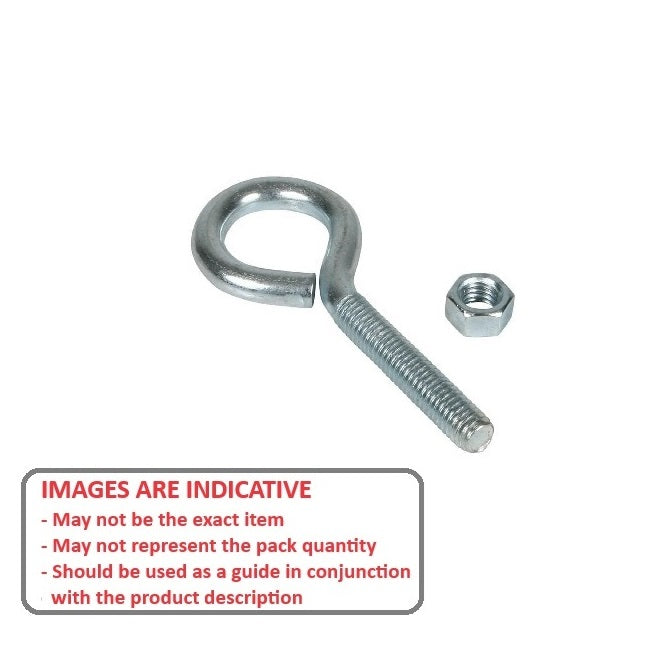

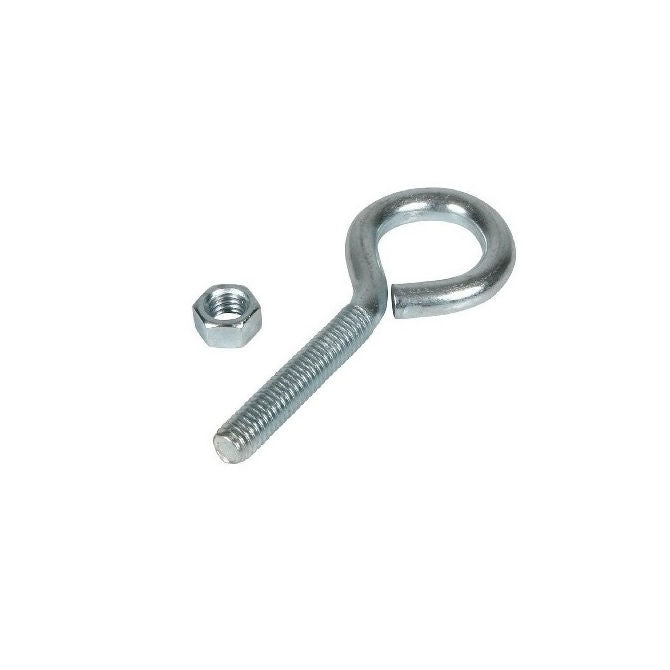

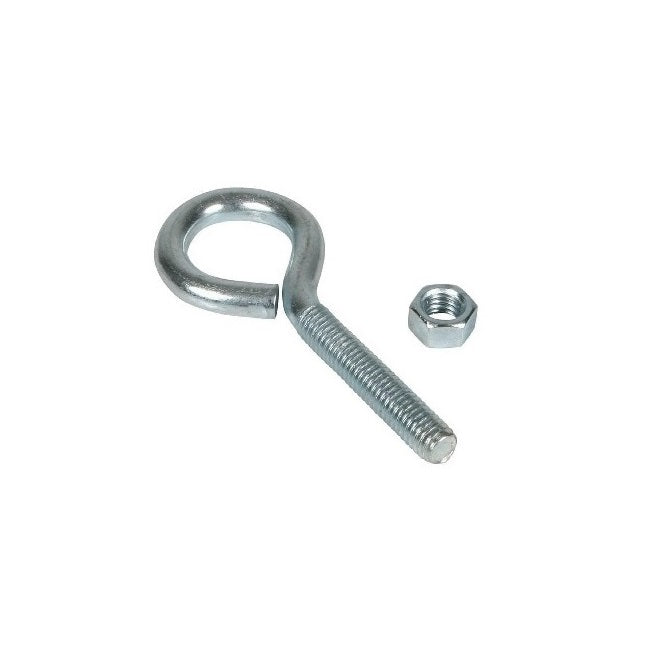

Eye Bolts - Bent - SteelSteel Bent Eye Bolts. Not recommended for lifting.
- Fastener with a loop or eye at one end, and a threaded shank on the other.
- Used to attach ropes or cables to secure objects by screwing the threaded end into a structure, with the loop providing an anchor point.
- Carbon steel zinc plated.
- Complete with nut.
- Rolled threads.
Product Data
- Thread : 5/8-11 UNC (15.88mm)
- Overall Length 114.300 mm
- Shank Length 50.800 mm
- Thread Length 15.875 mm
- Eye Inside Diameter 15.875 mm
