ES-0550-0198-08-S2 - Datasheet
MBA
Category Information

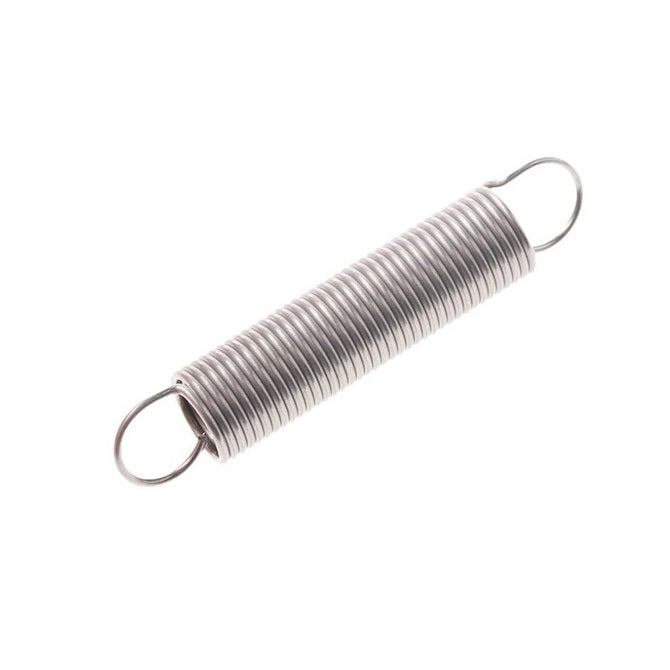

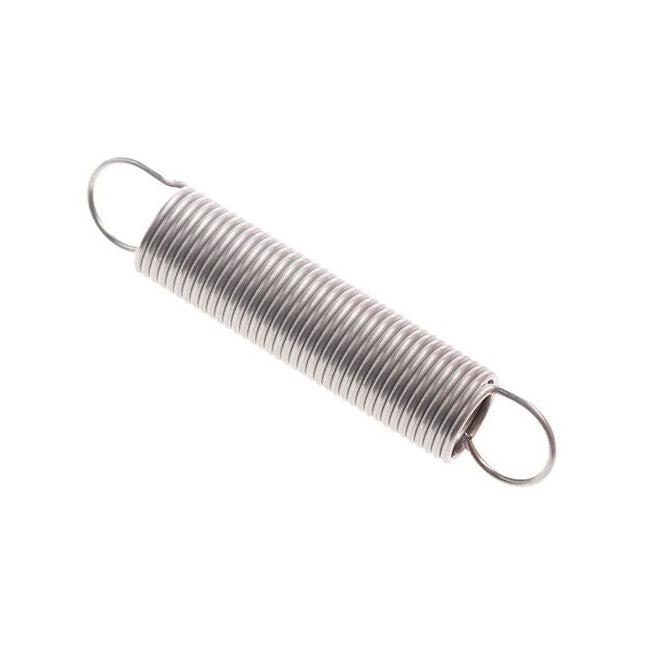

Springs - Extension - Stainless SteelStainless Steel Extension Springs. 300 gradd stainless steel selection, including 303, 304 and 316.
- Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
- Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
- This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
- 302 Stainless springs not recommended for applications exceeding 260 Deg C (500 Deg F).
- 302 stainless steel is slightly magnetic.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- OD (D0)
:
5.50
mm
(Equiv. 0.217 in.) - Approx. Overall Length (L0)
19.8
mm
(Equiv. 0.78 in.) - Wire Diameter (d)
0.80
mm
(Equiv. 0.031 in.) - Max. Extension (L1) 30.00 mm
- Spring Rate 2.08 N/mm
- Initial Tension (IT) 4.0 N
- Load at L1 25.17 N
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- ET4133
