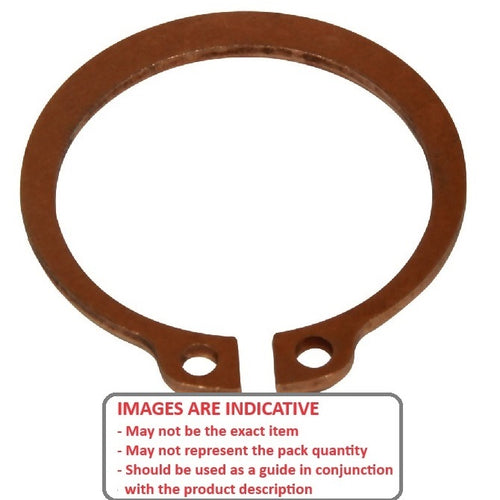

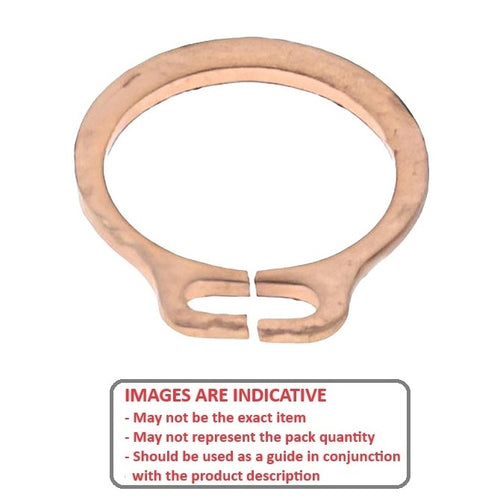

CCE-00556-B - Datasheet

MBA

Product Data

• Shaft Diameter (Ds) : 5.56 mm
  (Equiv. 0.219 in.)
• Clip Thickness (T) 0.40 mm _{+/- 0.038}
  (Equiv. 0.016 in.)
• Groove Dia. (Dg) 5.21 mm _{+/- 0.051}
  (Equiv. 0.205 in.)
• Approx. Loose Circlip ID (A) 5.00 mm
• Groove Width (W) 0.50 mm
• Clearance on Shaft (C1) 8.64 mm
• Clearance in Groove (C1) 8.23 mm
• Min. Lug Diameter (h) 0.61 mm
• Min. Extension (n) 0.60
• Standard MIL-16624
• Material Beryllium Copper

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Anderton and Seeger Cross Reference PDF

• Circlips PDF Catalogue

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• NoCor SH-021
• NoCor SH-021-BC
• SH021
• SH021BC
• A9Q27021
• A9Q27-021
• N1400-0022BC
• N14000022BC
• N1400-0021
• N14000021
• N14000021FDS
• N1400-0021FDS
