0T-0056-0048-0300-BR - Datasheet

MBA

Category Information

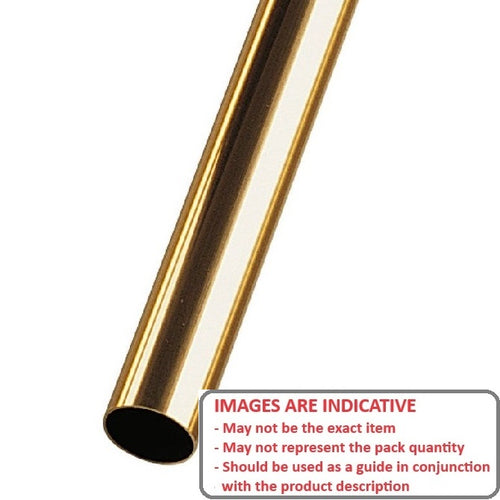

Tube - Round - Brass

Brass Round Tube. Hollow round tubing for general hobby applications.

  • Includes K&S Metals range and more
  • May be slightly oversized on OD so some reworking might be required before fitting closely mating parts.
  • This product is not recommended for use as a bearing shaft.
  • We suggest you use items from the category - Shafting - Ground for bearing shaft.
  • Many sizes fit neatly into larger sizes to allow for telescoping size applications. Some items may be available in longer or shorter lengths. E-mail sales@smallparts.com.au with enquiries.

Product Data

  • OD (D) : 5.56 mm +/- 0.051
    (Equiv. 0.219 in.)
  • ID (d) 4.85 mm +/- 0.076
    (Equiv. 0.191 in.)
  • Length (L) 304.8 mm +/- 1.0
    (Equiv. 12 in.)
  • Temper Alloy 260 1/2-3/4 hard mill finish ASTM B135
  • Weight 0.01 kg
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 8859K23
  • KSE KS0130
  • KSE KS130
  • KSE KS8130
