ECL-0048-0056A-CZ - Datasheet
MBA
Category Information

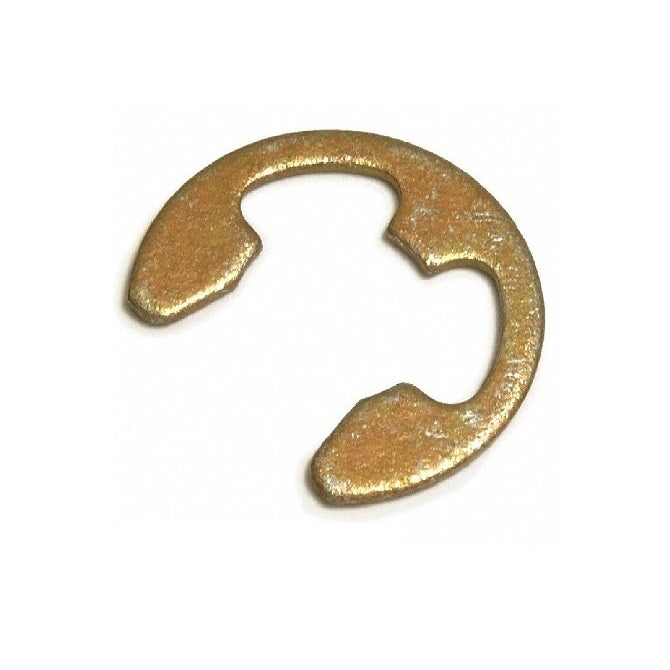

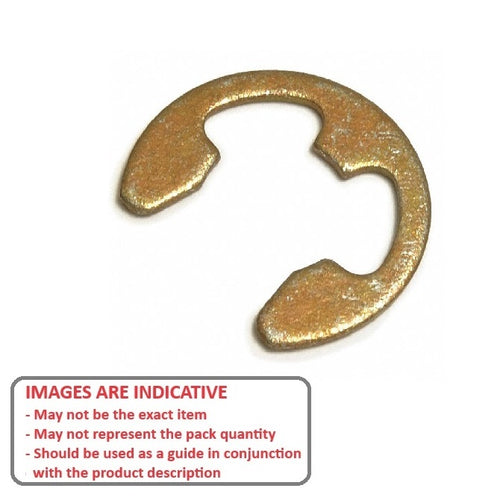

Retaining Rings - E-Clips - Basic - Carbon SteelCarbon Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Carbon spring steel including zinc plated and plain.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
- Includes plain and zinc plated.
Product Data
- Minimum Rec. Shaft Dia (S)
:
5.56
mm
+ 2.54 / - 0.00
(Equiv. 0.219 in.) - Groove Dia. (Dg)
4.76
mm
+/- 0.051
(Equiv. 0.187 in.) - Clip Thickness (T)
0.64
mm
+/ - 0.052
(Equiv. 0.025 in.) - Clip OD Loose (D1) 11.10 mm
- Groove Width (W) 0.74 mm
- Maximum Rec. Shaft Dia (S) 8.10
- Clip OD in groove (C1) 11.43 mm
- Min. Extension (n) 1.20
- Material Carbon Steel Zinc Plated
