Miniature Bearings Australia
0T-0056-0041-0300-BR - Datasheet
MBA
Category Information

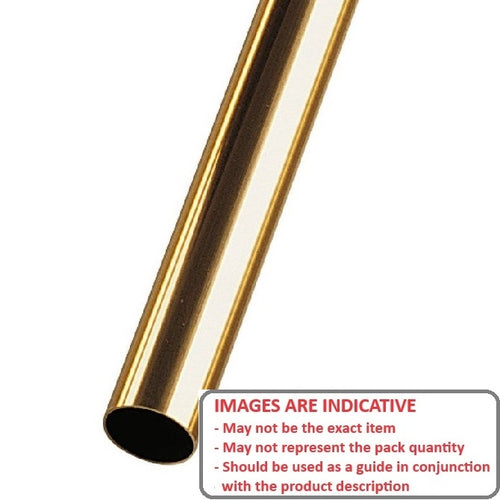

Tube - Round - BrassBrass Round Tube. Hollow round tubing for general hobby applications.
- Includes K&S Metals range and more
- May be slightly oversized on OD so some reworking might be required before fitting closely mating parts.
- This product is not recommended for use as a bearing shaft.
- We suggest you use items from the category - Shafting - Ground for bearing shaft.
- Many sizes fit neatly into larger sizes to allow for telescoping size applications. Some items may be available in longer or shorter lengths. E-mail sales@smallparts.com.au with enquiries.
Product Data
- OD (D)
:
5.56
mm
+/- 0.051
(Equiv. 0.219 in.) - ID (d)
4.08
mm
+/- 0.076
(Equiv. 0.161 in.) - Length (L)
304.8
mm
+/- 1.0
(Equiv. 12 in.) - Temper Alloy 260 1/2-3/4 hard mill finish ASTM B135
- Weight 0.04 kg
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- KSE KS8208
