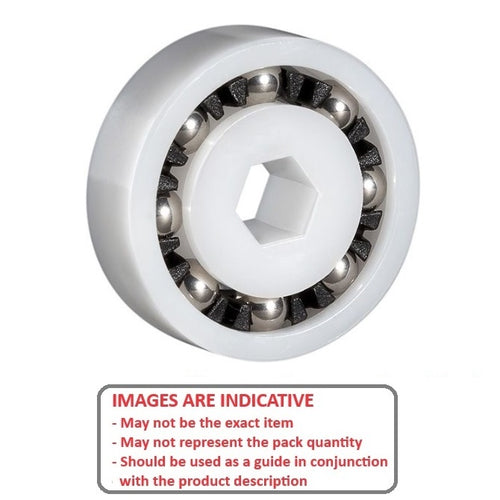

2045-ACE - Datasheet
KMS
Category Information
Bearings - Pool EquipmentPool Equipment Bearings. Acetal bearings for spa jets and pool vacuum wheels
- Bearings for pool cleaners are made from plastic, and come in a variety of unique designs allowing for the specialised and unique movement of the cleaners.
- No lubrication required other than the water they are running in
Product Data

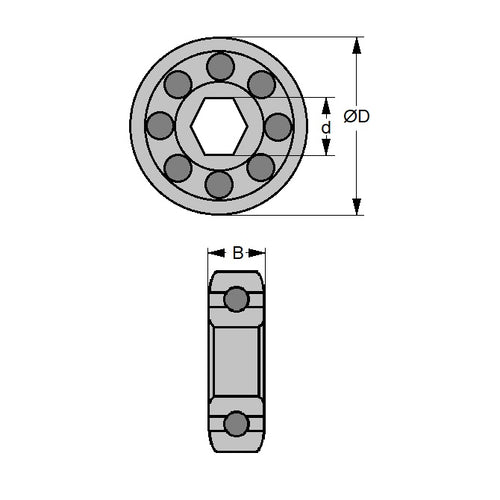

- ID (d) : Hex 5.56 mm
- OD (D)
22.23
mm
(Equiv. 0.875 in.) - Width (B)
7.14
mm
(Equiv. 0.281 in.) - Information Bearing for Polaris Pool Cleaner Wheel
- Dynamic Load Rating 18 Kg
- Static Load Rating 14 Kg
- Material Acetal
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Pool Cleaner Bearings
- Polaris Pool Cleaner - 340 - Plastic Wheel Bearing Hex Bore 5.56mm OD 22.23mm Width 7.14mm
- Polaris Pool Cleaner - 360 - Plastic Wheel Bearing Hex Bore 5.56mm OD 22.23mm Width 7.14mm
- Polaris Pool Cleaner - 380 - Plastic Wheel Bearing Hex Bore 5.56mm OD 22.23mm Width 7.14mm
Cross References
- KMS 2045
- Polaris 9-100-1108
- Polaris Pool Cleaner 9-100-1108
- 91001108
