Miniature Bearings Australia

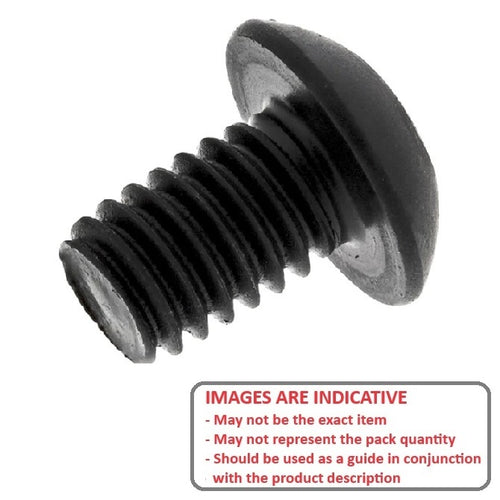

SC032C-010-B-SK-C - Datasheet
Brighton Best
Category Information
Screws - Button - Socket - Alloy SteelAlloy Steel Socket Button Screws. UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7380.
Product Data
- Thread Size (C) : 5-40 UNC (3.18mm)
- Thread Length (L)
9.5
mm
(Equiv. 0.374 in.) - Material Alloy Steel
- Max Head Diameter 6.0 mm
- Max Head Height 1.7 mm
- Hex Key (D) 1.98 (5/64) mm
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Material Steel Alloy
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 701035
- 91255A123
