Miniature Bearings Australia
TPC-032C-P-H - Datasheet
MBA
Category Information
Tools - Threading - Hand Taps - High Speed - Steel IndividualSteel Individual High Speed Hand Taps Threading Tools. High Speed Steel Short Machine Flute Taps. starting from M1 and 0-90 UNF. Many unusual sizes - M1.2, M1.4, M1.6, M1.7, BA Sizes, 2-56 and more. Sutton - PN - Bordo.
- An expanded range may be available on special order. Please enquire.
- High Speed Steel (HSS) Short Machine taps
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : 5-40 UNC (3.18mm)
- Pitch in mm / Threads Per Inch 0.635 mm / 40 TPI

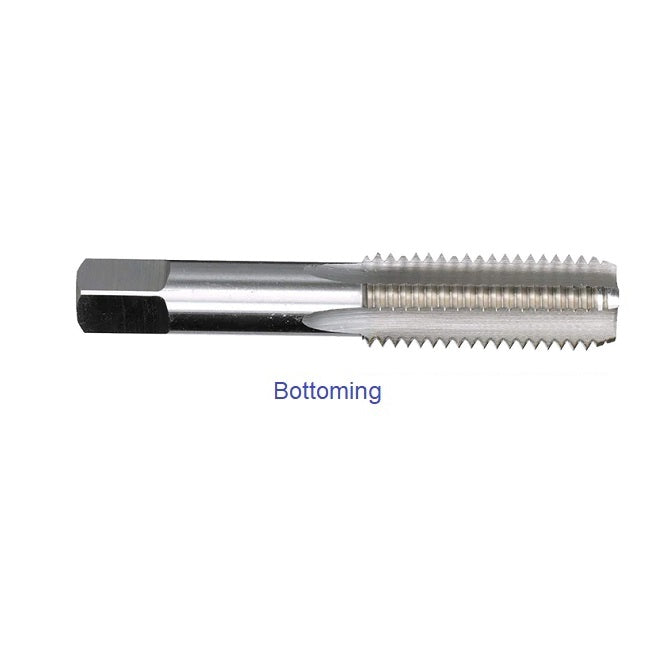

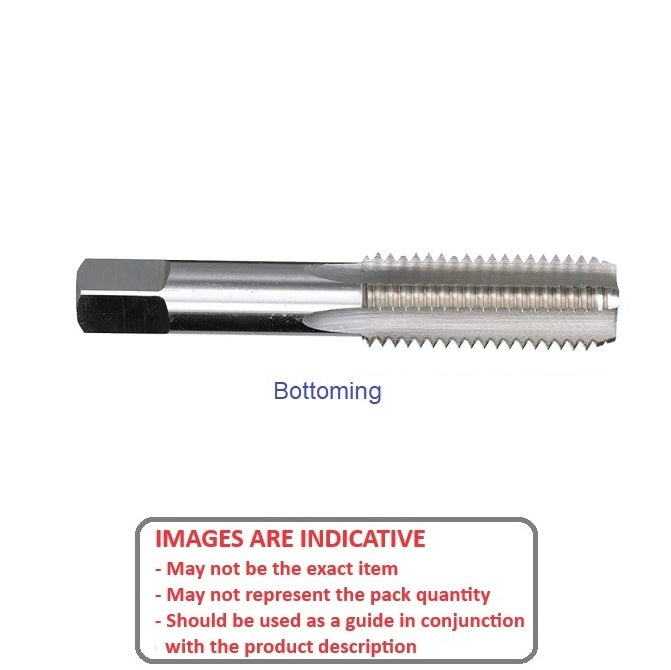

- Type Bottoming
- Drill Size Range 2.48 - 2.82 mm
- mm 2.50
- Material High Speed Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Sutton 020785
- 2522A736
- Bordo 3032-5GB
- Small Parts HSBT-540
- HSBT540
- 30325GB
