ORC-0533-N70 - Datasheet
MBA
Category Information
O-Rings - CordCord O-Rings. Nitrile, Fluoroelastomer and EPDM continuous length o-ring cord.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- Nitrile: Temp Range: -30 Deg C to +90 Deg C / Fluoroelastomer: Temp Range -20 Deg C to +240 Deg C.
- Nitrile: Excellent resistance to mineral oil based fluids, hydrocarbon fuels, greases and water.
- Nitrile: Not suitable for aromatic hydrocarbons, chlorinated hydrocarbons, brake fluid and some fire resistant hydraulic fluids.
- Fluoroelastomer (Viton(R)): Suitable for synthetic and hydraulic fluids, strong acids, steam, many chemicals and many alkalis.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

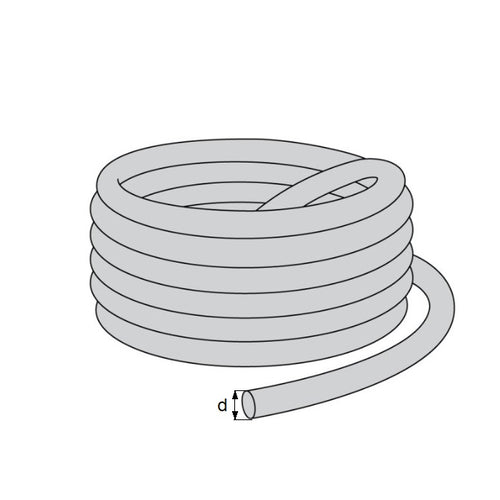

- Nominal Diameter (d)
:
5.33
mm
(Equiv. 0.21 in.) - Material Nitrile NBR
- Durometer Hardness Duro 70
- Maximum Continuous Length (L) 30 Mtr
- Material Nitrile (NBR, BUNA-N)
