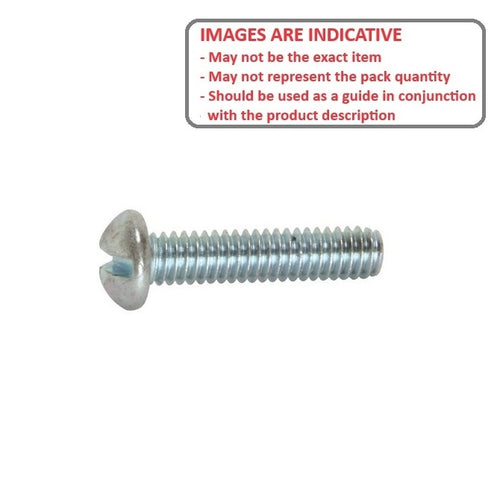

SC039W-038-R-SL-CZ - Datasheet
MBA
Category Information
Screws - Round Head - Steel - SlottedSlotted Steel Round Head Screws. Metal Thread Screws. Metric and BSW only. Supplied with nut.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : 5/32-32 BSW (3.969mm)
- Thread Length (L)
38.1
mm
(Equiv. 1.5 in.) - Material Zinc Plated Steel
- Max Head Diameter 6.73 mm
- Max Head Height 3.18 mm
- Type Round / Slotted
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech MSRSZP532112
