ES-0500-0200-05-M - Datasheet

MBA

Category Information

Springs - Extension - Music Wire

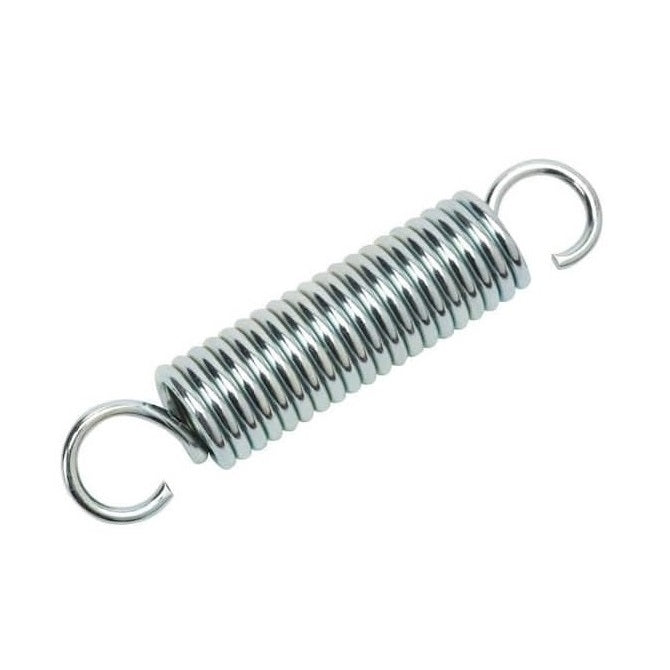

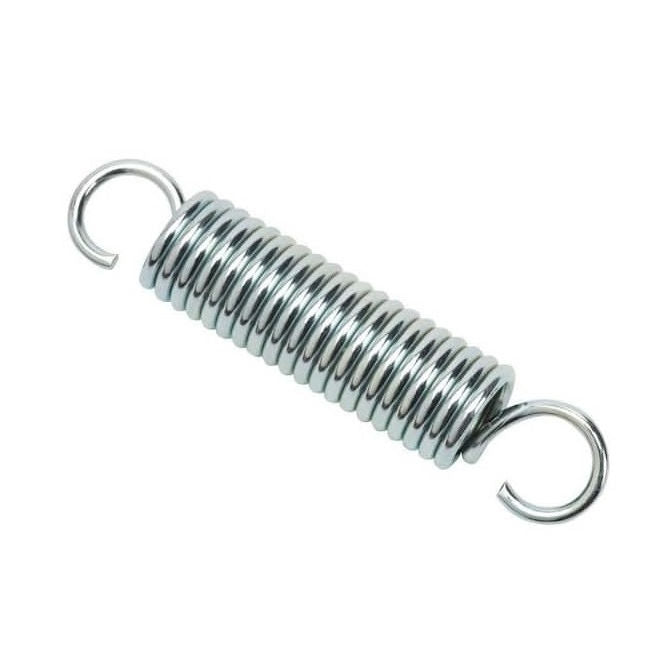

Music Wire Extension Springs. Carbon spring steel, zinc plated selection.

  • Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
  • Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
  • This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
  • Zinc Plated Spring Steel not recommended for applications exceeding 121 Deg C (250 Deg F).

Product Data

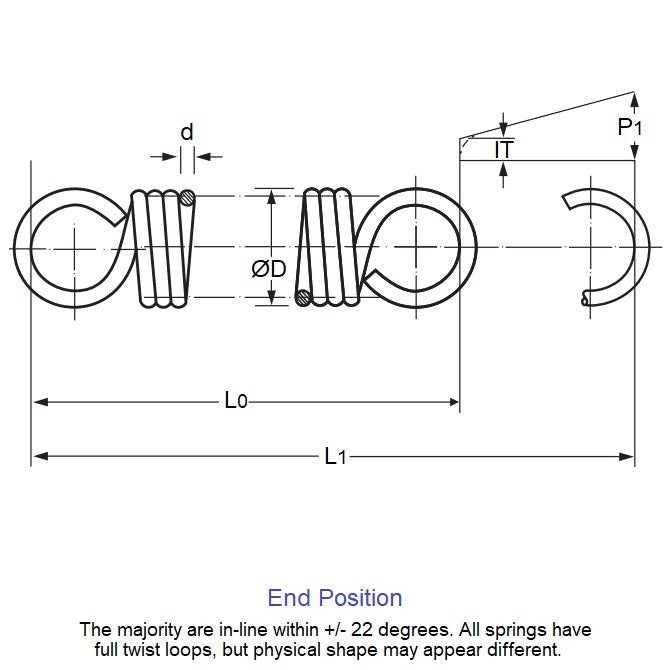

  • OD (D0) : 5.00 mm
    (Equiv. 0.197 in.)
  • Overall Length (L0) 20 mm
    (Equiv. 0.787 in.)
  • Wire Diameter (d) 0.500 mm
    (Equiv. 0.02 in.)
  • Max. Extension (L1) 31.70 mm
  • Spring Rate 0.28 N/mm
  • Initial Tension (IT) 0.9 N
  • Load at L1 4.22 N
  • Material Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-AWY5-20
  • CAWY520
