KM079-038-TEE-R - Datasheet
MBA
Category Information
Knobs - Thumb - For Cap ScrewsFor Cap Screws Thumb Knobs. Four Types and four colours to fit onto Socket Head Cap Screws.
- An expanded range may be available on special order. Please enquire.
- To fit Socket Head Cap Screws (Order Separately)
- Choice of 4 Colours.
- Choice of 4 styles.
- Made From Acetal Resin.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Suitable Cap Screw Thread : 5/16 (7.94mm) - Use Own Screw

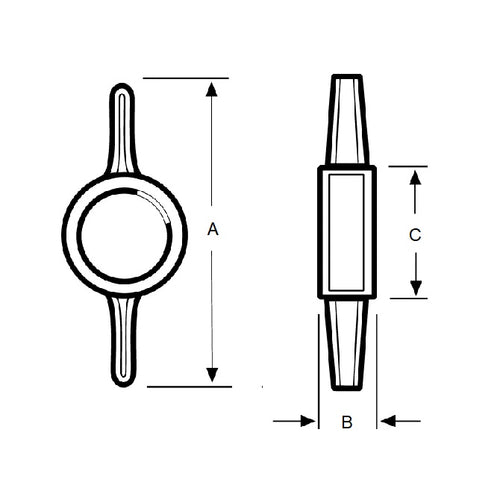

- Head Diameter (A)
38.10
mm
(Equiv. 1.5 in.) - Thickness (B)
10.3
mm
(Equiv. 0.406 in.) - Colour Red
- Style Tee
- Hub Diameter (C) 15.875 mm
- Material Plastic
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 94052A055-RED
- A 9M41-R8398925
- 94052A055RED
