KLI-079C-127-11-SS - Datasheet

MBA

Category Information

Thread Repair - Inserts - Keylocking

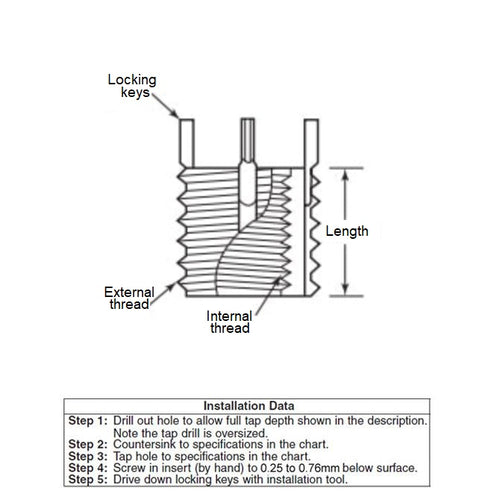

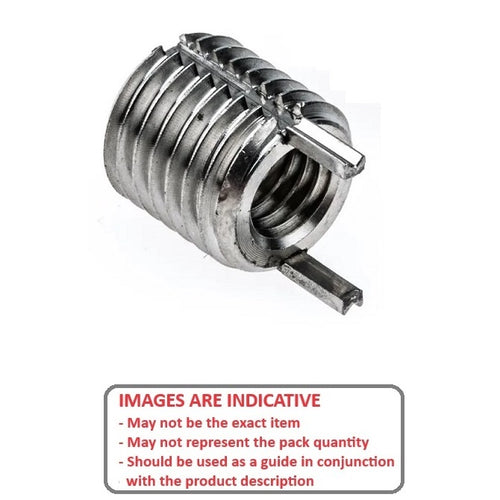

Keylocking Inserts Thread Repair. Steel or 303 Stainless Steel as indicated in the tables. Also known as keenserts.

  • Steel or 303 Stainless Steel as indicated in the tables
  • Maximum strength and reliability.
  • Positive mechanical lock against rotation:.
  • The insert kees are driven down into the tapped threads of the parent material during installation to securely lock the insert against rotation.
  • Inserts with internal thread lock are designed to securely lock a bolt when it is entered into the insert only a few turns.

Product Data

  • Internal Thread : 5/16-18 UNC (7.94mm)
  • External Thread 1/2-13 UNC (12.7mm)
  • Length 10.922 mm
    (Equiv. 0.43 in.)
  • Tap Drill Diameter 11.51 mm
  • Countersink Diameter 12.954 mm
  • Locking Keys 4
  • Tapped Hole Depth 12.700 mm
  • Removal Drill Size 10.319 mm
  • Removal Drill Depth 4.763 mm
  • Installation Tool KLI-64703RS
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 91731A053
  • KLI66303
  • KLI-66303
