KLI-079C-143-11-SS - Datasheet
MBA
Category Information

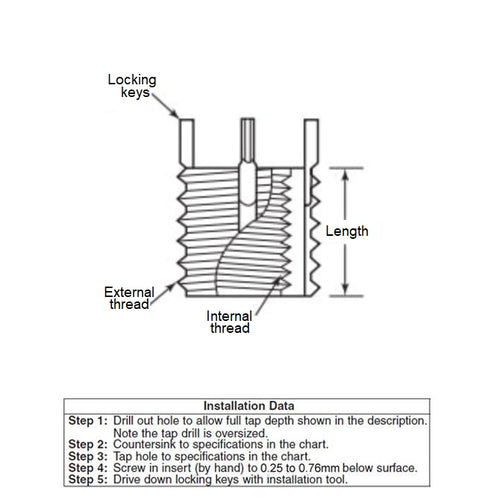

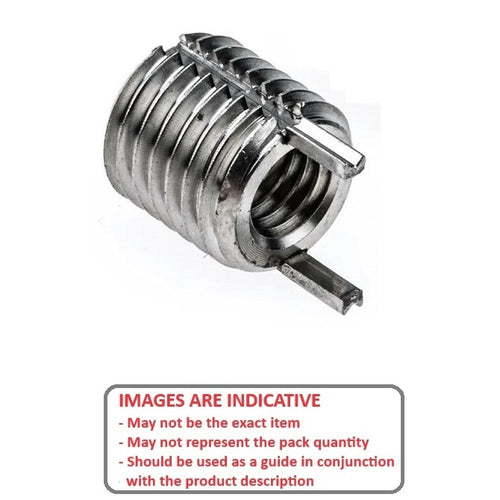

Thread Repair - Inserts - KeylockingKeylocking Inserts Thread Repair. Steel or 303 Stainless Steel as indicated in the tables. Also known as keenserts.
- Steel or 303 Stainless Steel as indicated in the tables
- Maximum strength and reliability.
- Positive mechanical lock against rotation:.
- The insert kees are driven down into the tapped threads of the parent material during installation to securely lock the insert against rotation.
- Inserts with internal thread lock are designed to securely lock a bolt when it is entered into the insert only a few turns.
Product Data
- Internal Thread : 5/16-18 UNC (7.94mm)
- External Thread 9/16-12 UNC
- Length
10.922
mm
(Equiv. 0.43 in.) - Tap Drill Diameter 13.10 mm
- Countersink Diameter 14.478 mm
- Locking Keys 4
- Tapped Hole Depth 14.224 mm
- Removal Drill Size 11.906 mm
- Removal Drill Depth 4.763 mm
- Installation Tool KLI-64734RS
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- KLI66335
- KLI-66335
