BEB-1500RS - Datasheet
MBA
Category Information

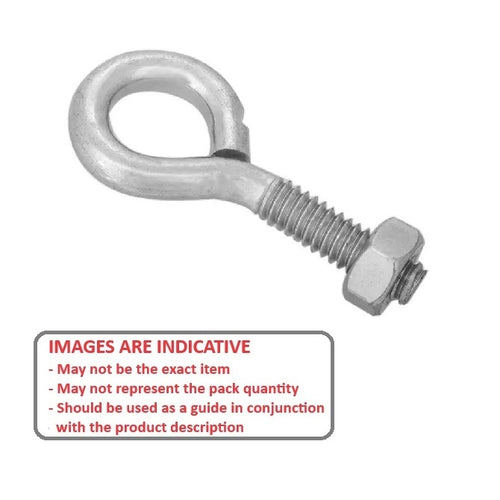

Eye Bolts - Bent - Stainless SteelStainless Steel Bent Eye Bolts. Not recommended for lifting. 304 stainless steel.
- Fastener with a loop or eye at one end, and a threaded shank on the other.
- Used to attach ropes or cables to secure objects by screwing the threaded end into a structure, with the loop providing an anchor point.
- Complete with nut.
- Rolled threads.
Product Data
- Thread : 5/16-18 UNC (7.94mm)
- Overall Length
79.375
mm
(Equiv. 3.125 in.) - Shank Length
50.800
mm
(Equiv. 2 in.) - Thread Length 31.750 mm
- Eye Inside Diameter 15.875 mm
Product Compliance and Data
Additional Resources
Cross References
- 9489T66
