BEB-500RS - Datasheet

MBA

Category Information

Eye Bolts - Bent - Steel

Steel Bent Eye Bolts. Not recommended for lifting.

  • Carbon steel zinc plated.
  • Complete with nut.
  • Rolled threads.

Product Data

  • Thread : 5/16-18 UNC (7.94mm)
  • Overall Length 79.375 mm
    (Equiv. 3.125 in.)
  • Shank Length 50.800 mm
    (Equiv. 2 in.)
  • Thread Length 31.750 mm
  • Eye Inside Diameter 15.875 mm
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 9489T27
    View full details

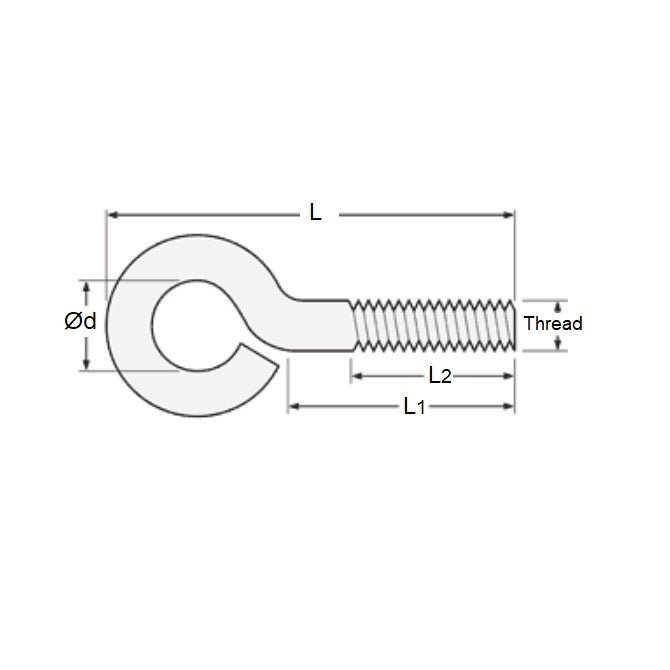

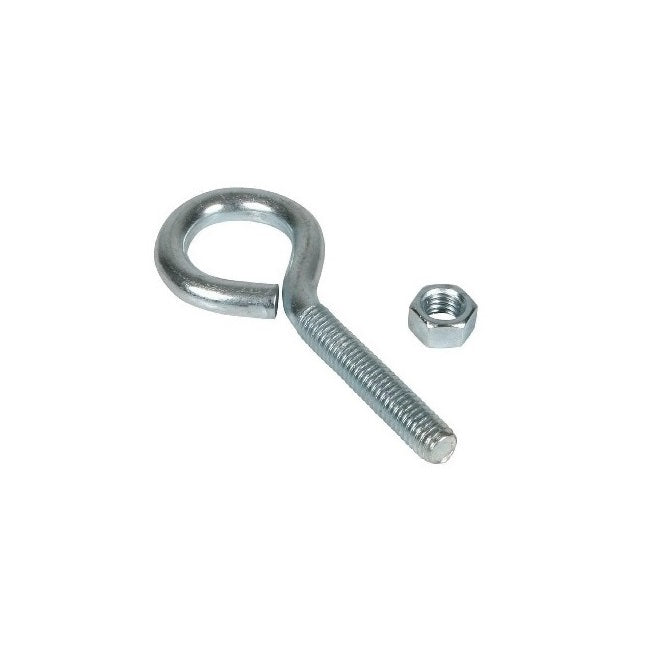

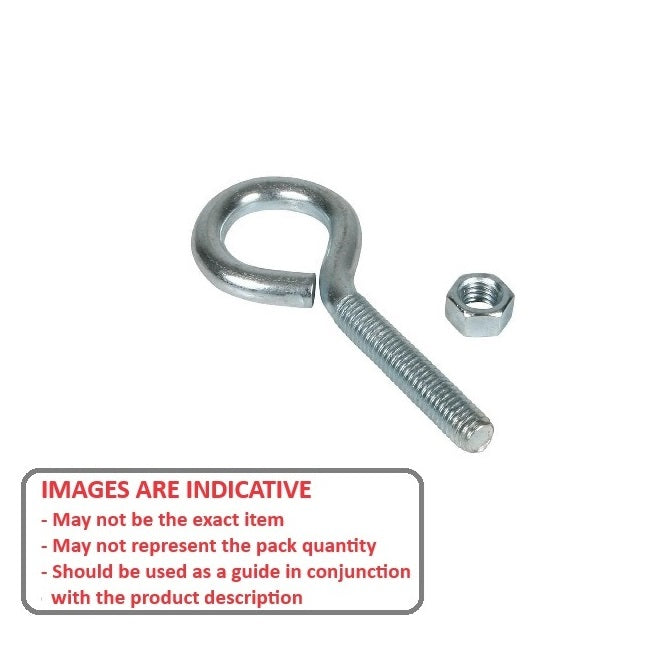

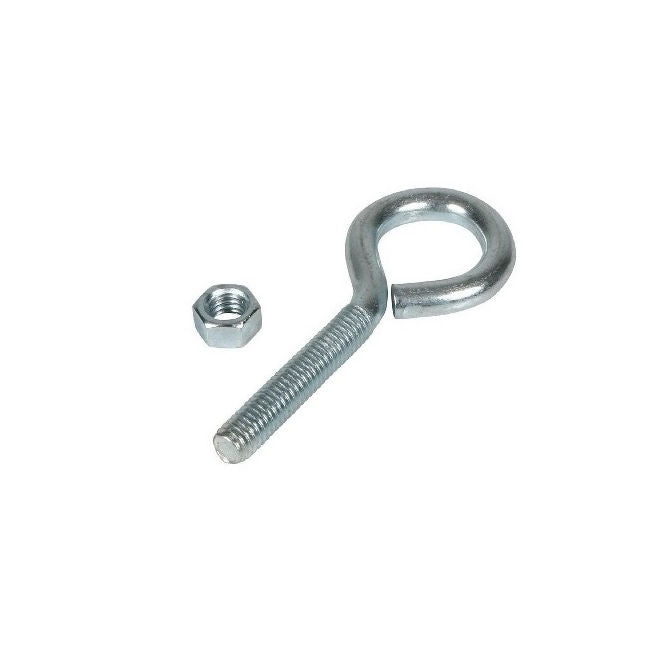

    BEB-500RSDiagramBEB-500RSImage
