Miniature Bearings Australia
KF079C-057-5L-PB - Datasheet
MBA
Category Information
Knobs - Lobe - Five Lobe - Female - Through HoleThrough Hole Female Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 5/16-18 UNC (7.94mm)

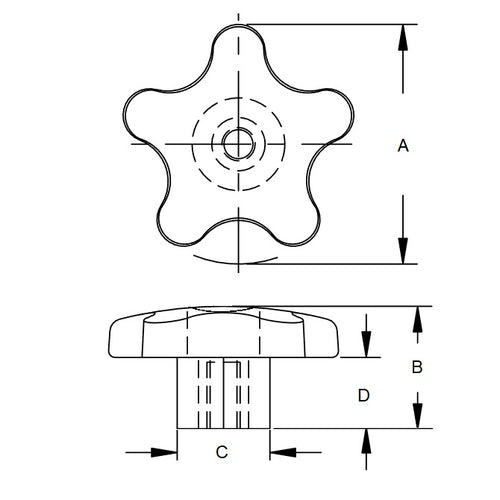

- Head Diameter (A)
57.15
mm
(Equiv. 2.25 in.) - Thread Length
18.3
mm
(Equiv. 0.72 in.) - Colour Black
- Hub Diameter (C) 21.43 mm
- Hub Length (D) 6.35 mm
- Knob Height (B) 18.26 mm
- Material Zinc Plated Steel Hex Nut
Product Compliance and Data
Additional Resources
Cross References
- DK-185
- DK185
