Miniature Bearings Australia
KM079C-055-3L-SFT - Datasheet
MBA
Category Information

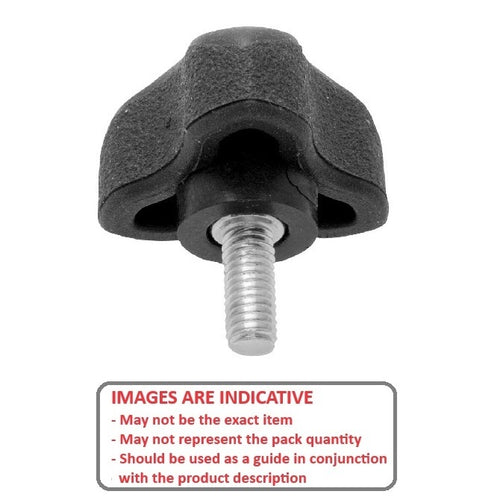

Knobs - Lobe - Three Lobe - Male - Soft TouchSoft Touch Male Three Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 5/16-18 UNC (7.94mm)

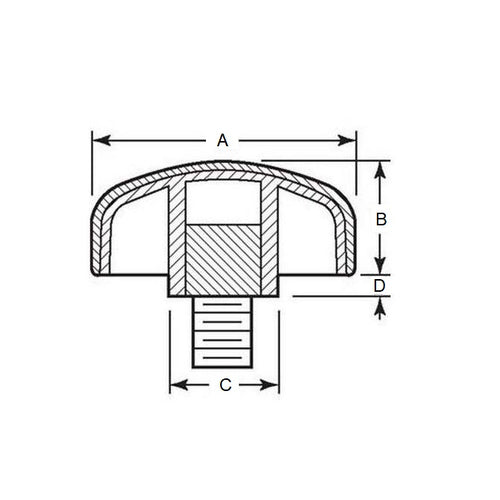

- Head Diameter (A)
55.12
mm
(Equiv. 2.17 in.) - Thread Length
25.4
mm
(Equiv. 1 in.) - Colour Black
- Hub Diameter (C) 20.57 mm
- Hub Length (D) 3.81 mm
- Knob Height (B) 27.43 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- RK327
- RK-327
