Miniature Bearings Australia
KF079C-050-KN-SFT-TP - Datasheet
MBA
Category Information

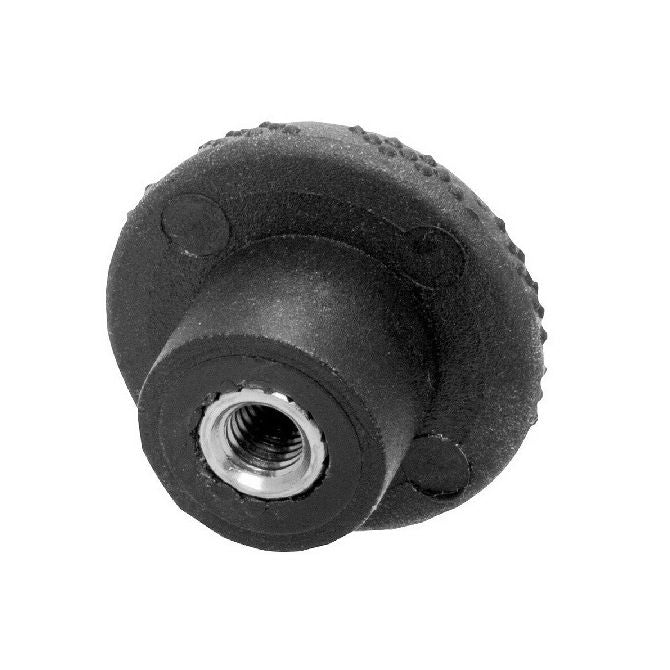

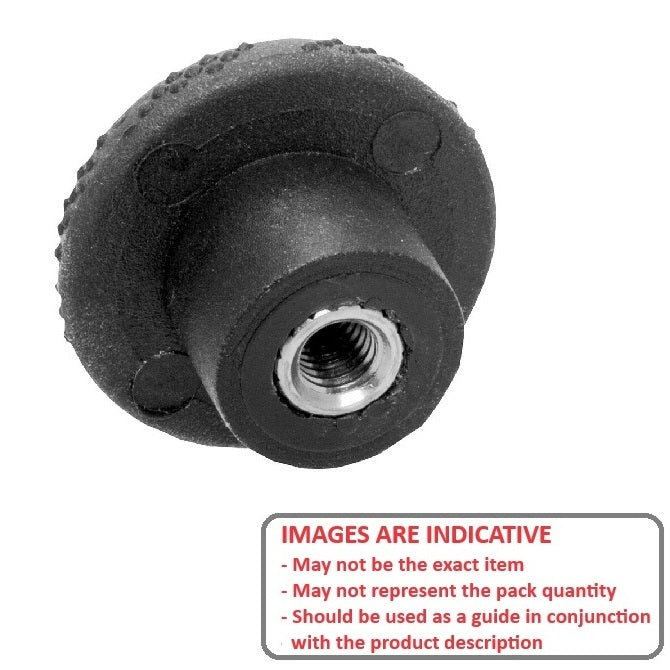

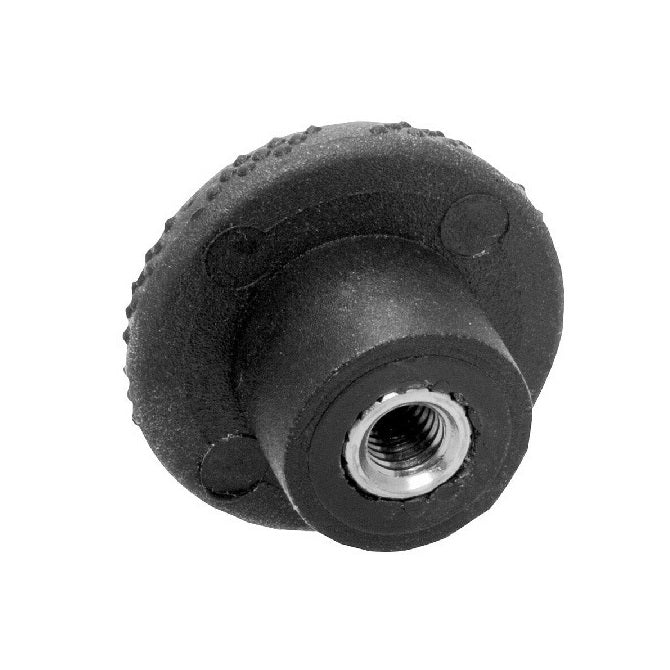

Knobs - Knurled - Female - Soft Touch ThermoplasticSoft Touch Thermoplastic Female Knurled Knobs. Soft Touch Black Thermoplastic with Steel Insert.
Product Data
- Thread Size : 5/16-18 UNC (7.94mm)

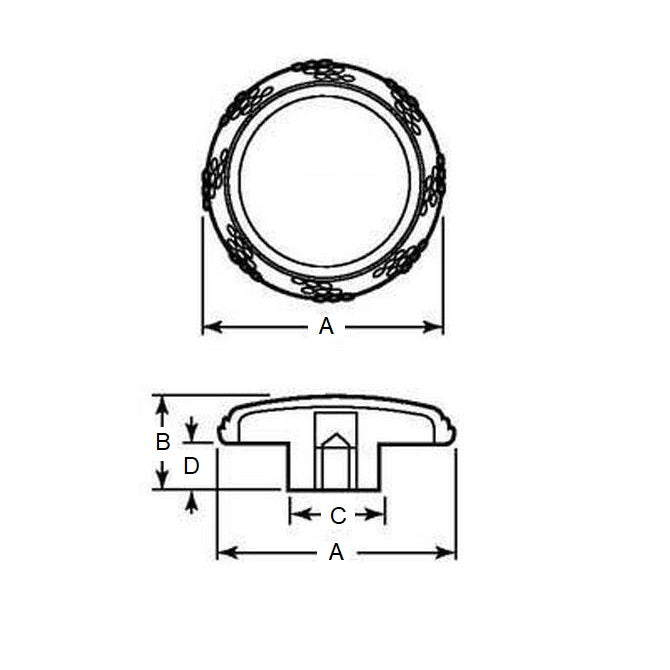

- Head Diameter (A)
50.04
mm
(Equiv. 1.97 in.) - Overall Height (B) 16.51 mm
- Hub Diameter (C) 19.56 mm
- Hub Height (D) 5.33 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- RK31
- RK-31
