KM079C-050-3L - Datasheet

MBA

Category Information

Knobs - Lobe - Three Lobe - Male - Standard

Standard Male Three Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 5/16-18 UNC (7.94mm)
  • Head Diameter (A) 50.04 mm
    (Equiv. 1.97 in.)
  • Thread Length 25.4 mm
    (Equiv. 1 in.)
  • Colour Black
  • Hub Diameter (C) 21.08 mm
  • Hub Length (D) 8.89 mm
  • Knob Height (B) 30.99 mm
  • Material Plated Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • RST-145
  • RST145
View full details

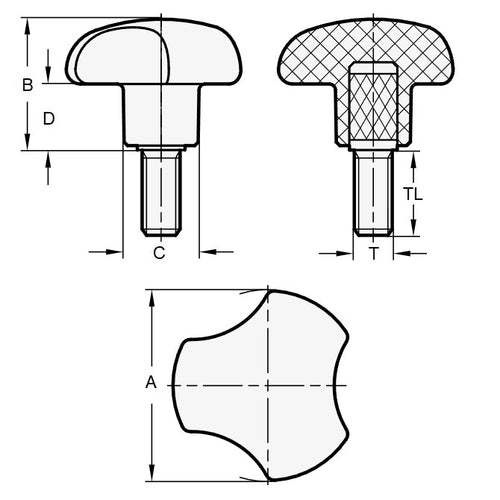

KM079C-050-3LDiagramKM079C-050-3LImage
