KM079C-050-3L-SAF25 - Datasheet
MBA
Category Information

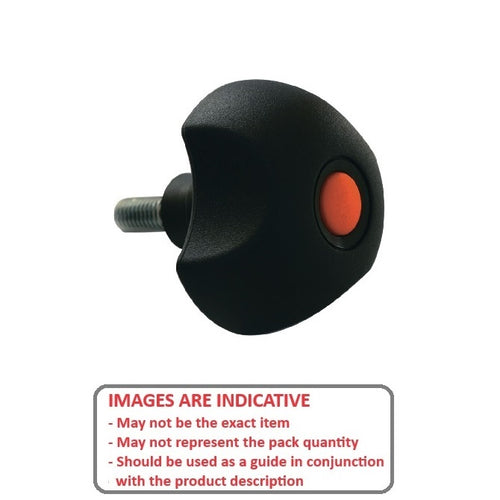

Knobs - Lobe - Three Lobe - Male - SafetySafety Male Three Lobe Lobe Knobs. Knob only turns when pressed downwards and turned simultaneously to avoid involuntary turning. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 5/16-18 UNC (7.94mm)

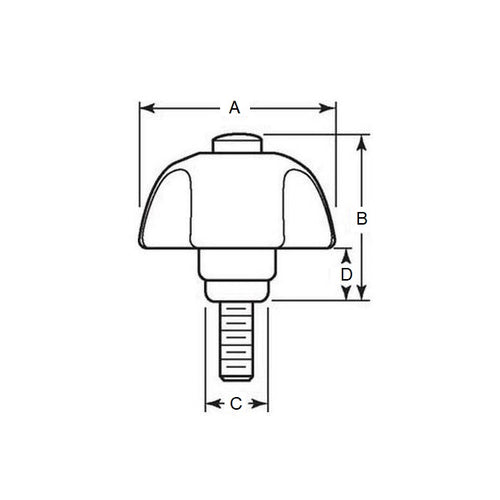

- Head Diameter (A)
50.04
mm
(Equiv. 1.97 in.) - Thread Length
25.4
mm
(Equiv. 1 in.) - Hub Diameter (C) 19.56 mm
- Hub Length Resting (D) 17.53 mm
- Hub Length Working (D) 13.46 mm
- Steel
- Material Plastic with Insert
Product Compliance and Data
Additional Resources
Cross References
- RST-221
- RST221
