KF079C-050-5L-BR16 - Datasheet
MBA
Category Information

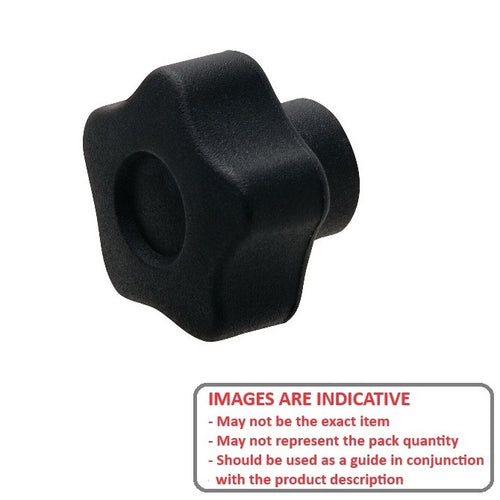

Knobs - Lobe - Five Lobe - Female - StandardStandard Female Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 5/16-18 UNC (7.94mm)

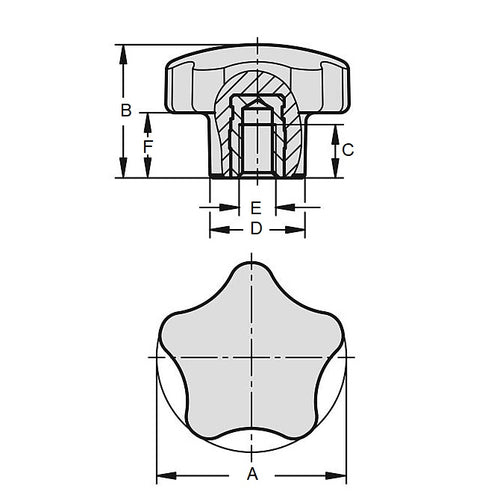

- Head Diameter (A)
50.04
mm
(Equiv. 1.97 in.) - Thread Length
16.0
mm
(Equiv. 0.63 in.) - Colour Black
- Hub Diameter (C) 17.78 mm
- Hub Length (F) 17.02 mm
- Knob Height (B) 30.99 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- KHY-540
- KHY540
