KF079C-050-6L-PBR - Datasheet
MBA
Category Information
Knobs - Lobe - Six Lobe - Female - Through HoleThrough Hole Female Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 5/16-18 UNC (7.94mm)

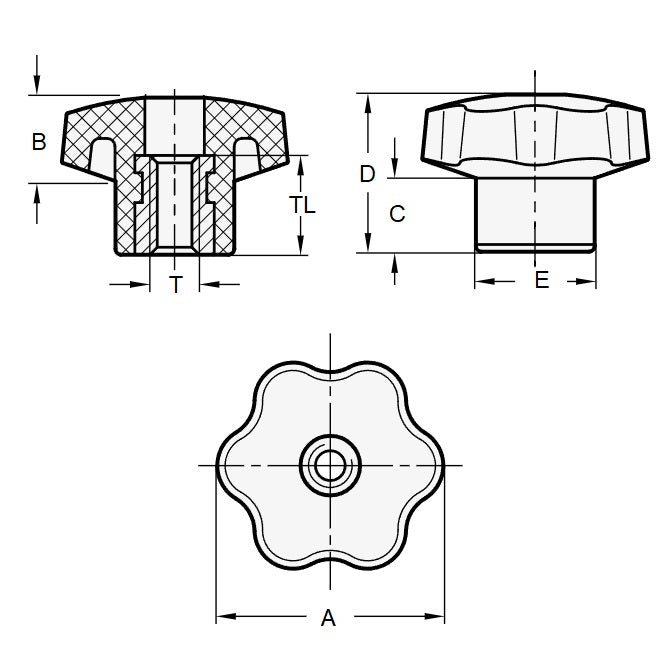

- Head Diameter (A)
50.04
mm
(Equiv. 1.97 in.) - Thread Length
11.9
mm
(Equiv. 0.469 in.) - Colour Black
- Hub Diameter (E) 20.07 mm
- Hub Length (C) 14.48 mm
- Knob Height (D) 28.45 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- JCL-79
- JCL79
