KM079C-050-R-SFT - Datasheet
MBA
Category Information

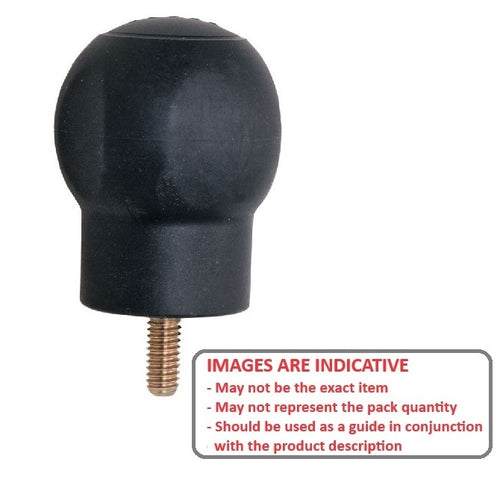

Knobs - Round Male SoftRound Male Soft Knobs. Special high impact strength black technopolymer coated with soft touch elastomer chemically bonded (hardness 70 Shore A).
- Black matte finish.
- Resistant to solvents, oils, greases and other chemical agents.
- Zinc plated threaded steel stud.
Product Data
- Thread Size : 5/16-18 UNC (7.94mm)

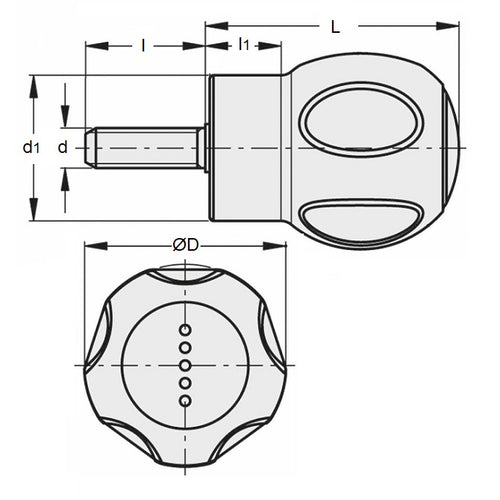

- Head Diameter (D)
50.00
mm
(Equiv. 1.969 in.) - Length (L)
62.0
mm
(Equiv. 2.441 in.) - Mounting Hole/Screw Length 19.05
- Max Limit Tightening Torque 24 Nm
- Hub Diameter (C) 36.00 mm
- Hub Length (l1) 18.00 mm
- Material Rubber
Product Compliance and Data
Additional Resources
Cross References
- ESP375
- ESP-375
