Miniature Bearings Australia
KM079C-050-5LSFT38-ST - Datasheet
MBA
Category Information

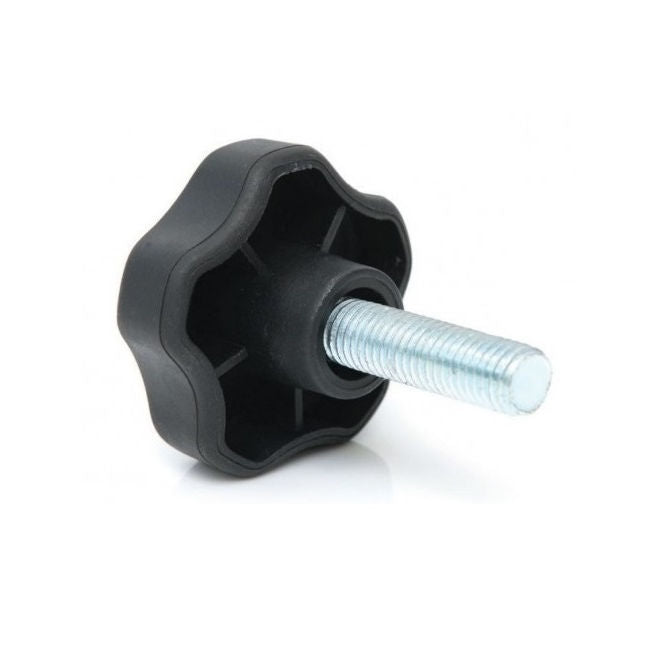

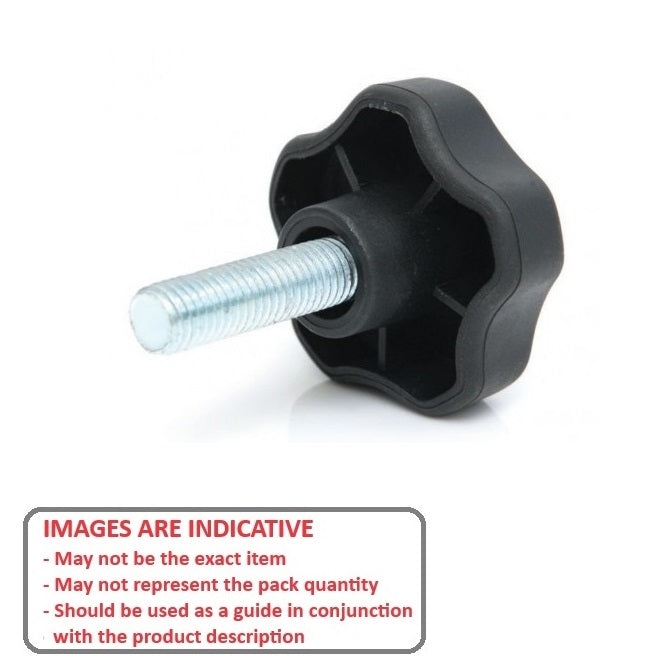

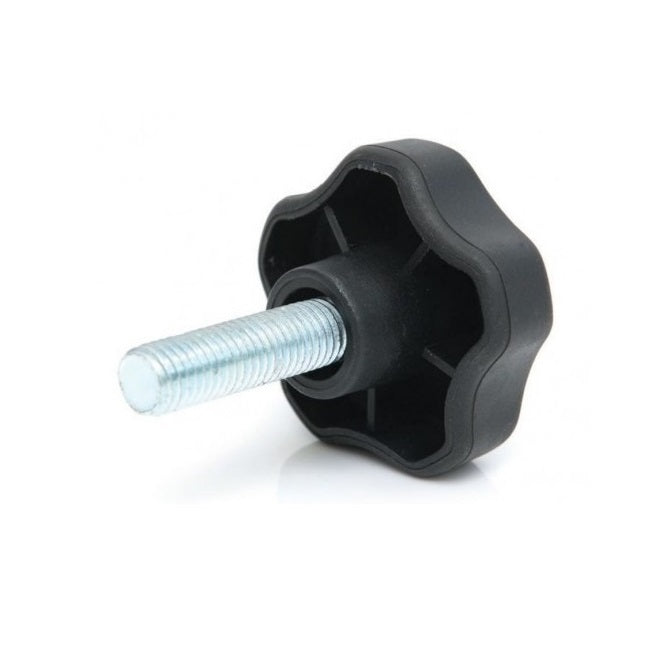

Knobs - Lobe - Five Lobe - Male - Soft TouchSoft Touch Male Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

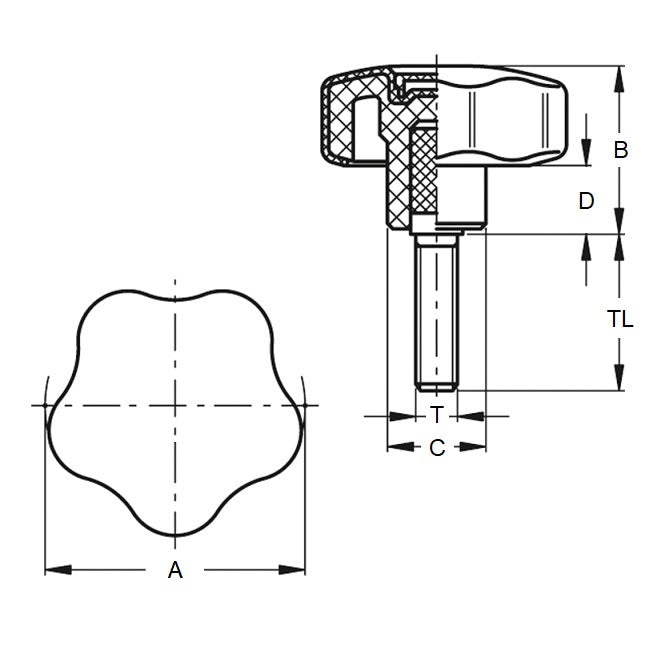

- Thread Size : 5/16-18 UNC (7.94mm)
- Head Diameter (A)
50.00
mm
(Equiv. 1.969 in.) - Thread Length
38.1
mm
(Equiv. 1.5 in.) - Colour Black
- Hub Diameter (C) 19.05 mm
- Knob Height (B) 32.00 mm
- Material Plated Steel and Plastic
Product Compliance and Data
Additional Resources
Cross References
- KHY-250
- KHY250
