Miniature Bearings Australia
KM079C-050-6L32-S4 - Datasheet
MBA
Category Information

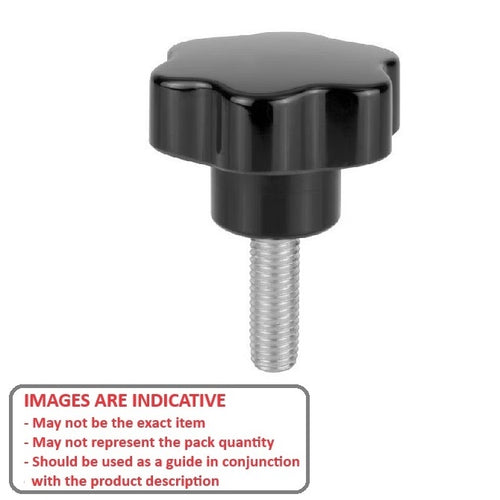

Knobs - Lobe - Six Lobe - MaleMale Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 5/16-18 UNC (7.94mm)

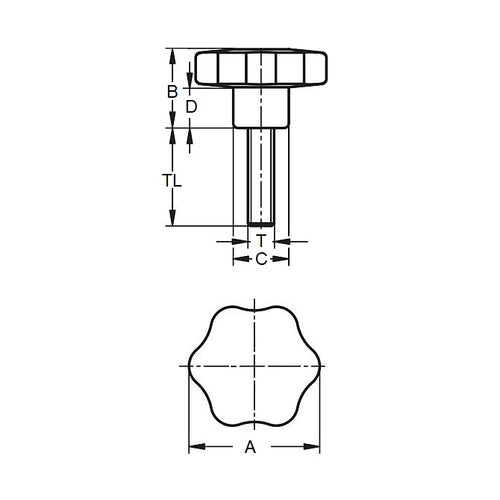

- Head Diameter (A)
50.00
mm
(Equiv. 1.969 in.) - Thread Length
31.8
mm
(Equiv. 1.252 in.) - Colour Black
- Hub Diameter (C) 20.07 mm
- Hub Length (D) 14.48 mm
- Knob Height (B) 28.45 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- JCL196
- JCL-196
