Miniature Bearings Australia
KM079C-049-5L-SFT38-ST - Datasheet
MBA
Category Information

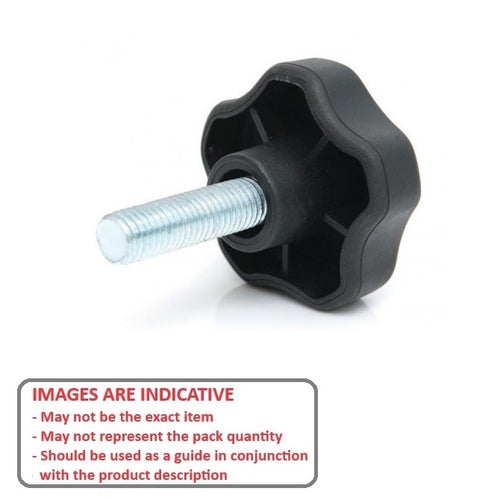

Knobs - Lobe - Five Lobe - Male - Soft TouchSoft Touch Male Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 5/16-18 UNC (7.94mm)
- Head Diameter (A)
48.51
mm
(Equiv. 1.91 in.) - Thread Length
38.1
mm
(Equiv. 1.5 in.) - Colour Black
- Hub Diameter (C) 23.62 mm
- Hub Length (D) 4.32 mm
- Knob Height (B) 27.69 mm
- Material Plated Steel and Plastic
Product Compliance and Data
Additional Resources
Cross References
- 61125K71
- RK77
- RK-77
