KM079C-044-CS25 - Datasheet

MBA

Category Information

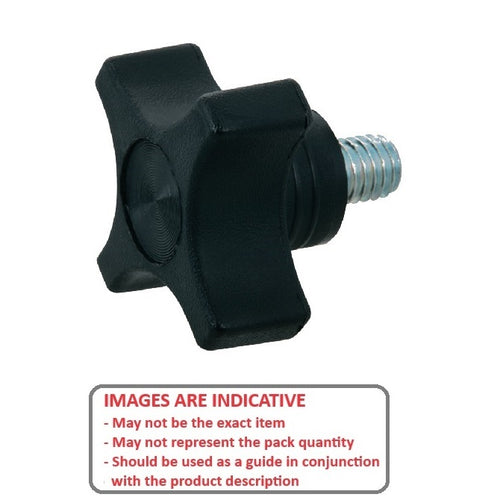

Knobs - Cross - Male

Male Cross Knobs. Black Plastic Knob with thread.

  • 4 Prong cross knobs with threads.

Product Data

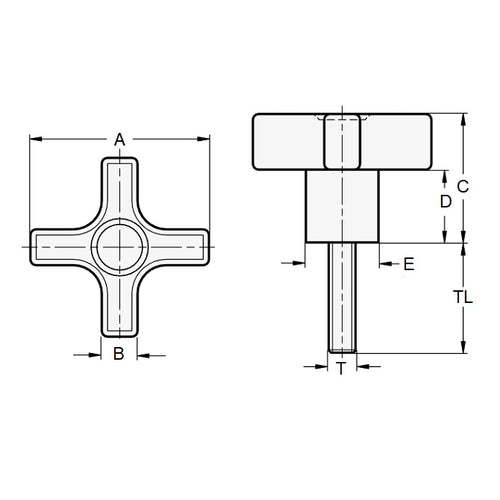

  • Thread Size : 5/16-18 UNC (7.94mm)
  • Head Diameter (A) 44.45 mm
    (Equiv. 1.75 in.)
  • Thread Length 25.4 mm
    (Equiv. 1 in.)
  • Knob Length (C) 25.40 mm
  • Hub Diameter (E) 20.64 mm
  • Hub Length (D) 12.70 mm
  • Material Plated Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • DK680
  • DK-680
