KM079C-044-CSS13 - Datasheet

MBA

Category Information

Knobs - Cross - Male

Male Cross Knobs. Black Plastic Knob with thread.

  • 4 Prong cross knobs with threads.

Product Data

  • Thread Size : 5/16-18 UNC (7.94mm)
  • Head Diameter (A) 44.45 mm
  • Thread Length 12.7 mm
  • Knob Length (C) 25.40 mm
  • Hub Diameter (E) 19.05 mm
  • Hub Length (D) 11.11 mm
  • Material Plated Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 5993K52
  • Reid Tool® DK-1198
  • DK1198
View full details

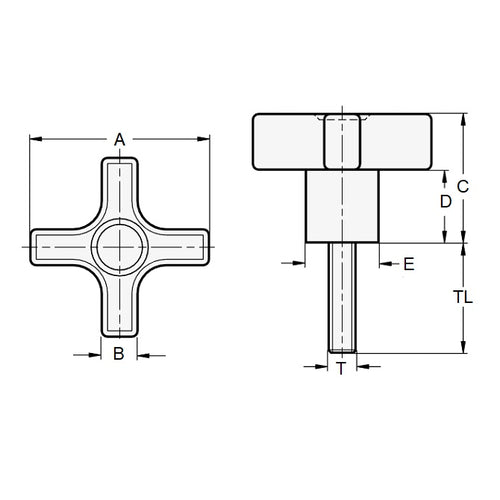

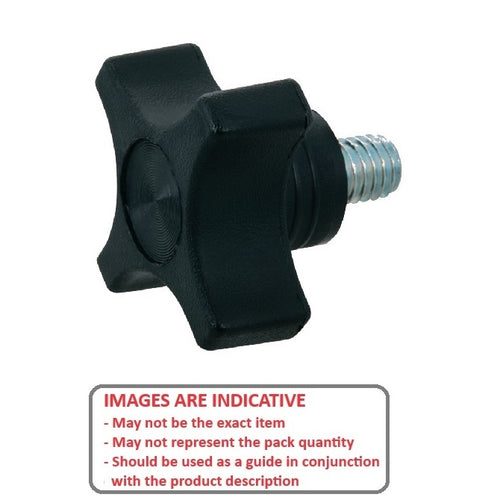

KM079C-044-CSS13DiagramKM079C-044-CSS13Image
