KF079C-044-CBL - Datasheet

MBA

Category Information

Knobs - Cross - Female - Blind

Blind Female Cross Knobs. Black Plastic Knob with a Brass insert.

  • 4 Prong cross knobs to go onto threads.

Product Data

  • Thread Size : 5/16-18 UNC (7.94mm)
  • Head Diameter (A) 44.45 mm
    (Equiv. 1.75 in.)
  • Thread Length 12.7 mm
    (Equiv. 0.5 in.)
  • Colour Black
  • Hub Diameter (E) 19.05 mm
  • Hub Length (D) 11.11 mm
  • Knob Height (C) 25.40
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 5993K28
  • DK-1188
  • DK1188
View full details

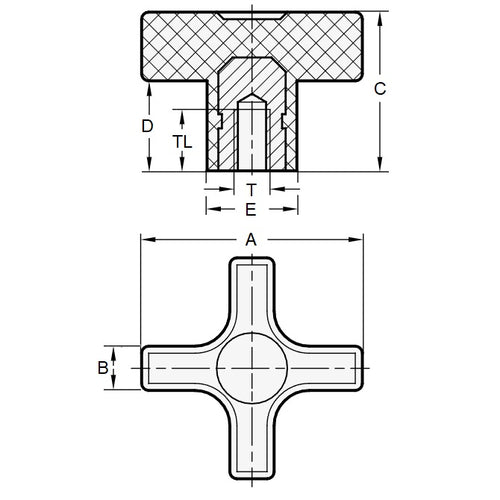

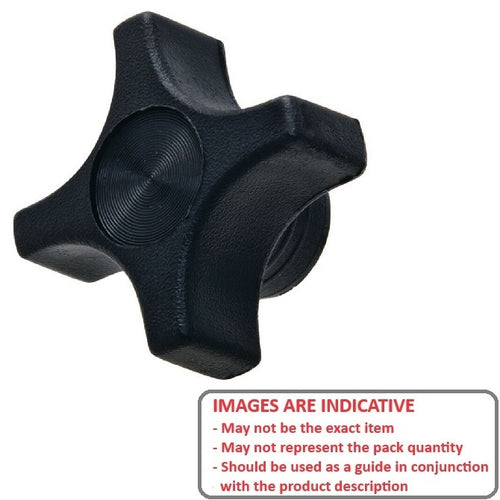

KF079C-044-CBLDiagramKF079C-044-CBLImage
