KF079C-040-6L-PSS - Datasheet

MBA

Category Information

Knobs - Lobe - Six Lobe - Female - Through Hole

Through Hole Female Six Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 5/16-18 UNC (7.94mm)
  • Head Diameter (A) 40.13 mm
    (Equiv. 1.58 in.)
  • Thread Length 11.9 mm
    (Equiv. 0.469 in.)
  • Colour Black
  • Hub Diameter (E) 17.02 mm
  • Hub Length (C) 12.45 mm
  • Knob Height (D) 23.88 mm
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • JCL-182
  • JCL182
View full details

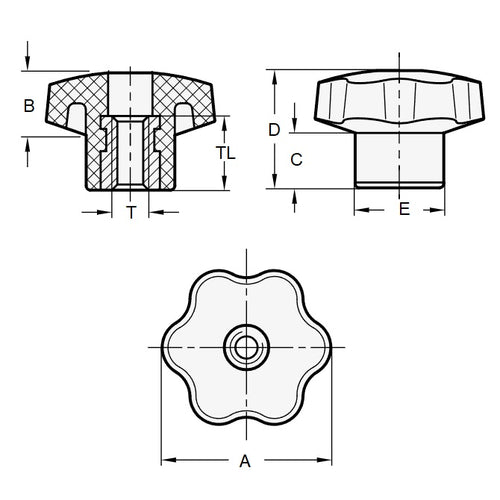

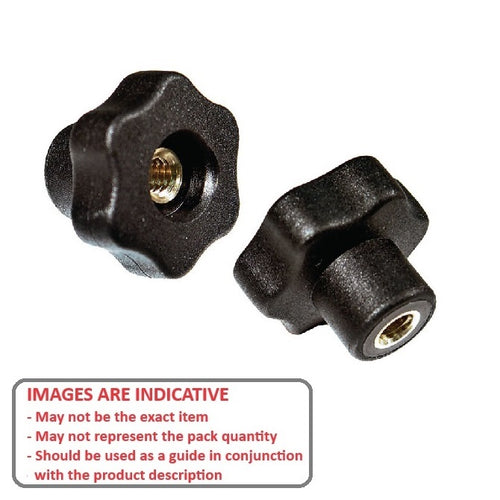

KF079C-040-6L-PSSDiagramKF079C-040-6L-PSSImage
