KF079C-040-5LSFT-P - Datasheet
MBA
Category Information

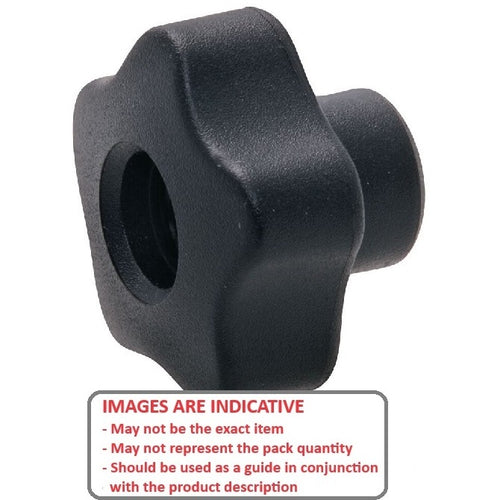

Knobs - Lobe - Five Lobe - Female - Soft Touch -Through HoleSoft Touch -Through Hole Female Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 5/16-18 UNC (7.94mm)

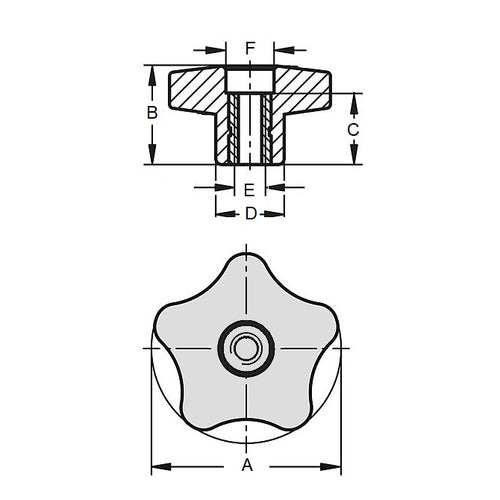

- Head Diameter (A)
39.88
mm
(Equiv. 1.57 in.) - Hub Diameter (C) 18.03 mm
- Hub Length (D) 17.02 mm
- Knob Height (B) 26.92 mm
- Material Black Plastic
Product Compliance and Data
Additional Resources
Cross References
- KHY180
- KHY-180
