KF079C-040-5L-BR18 - Datasheet
MBA
Category Information

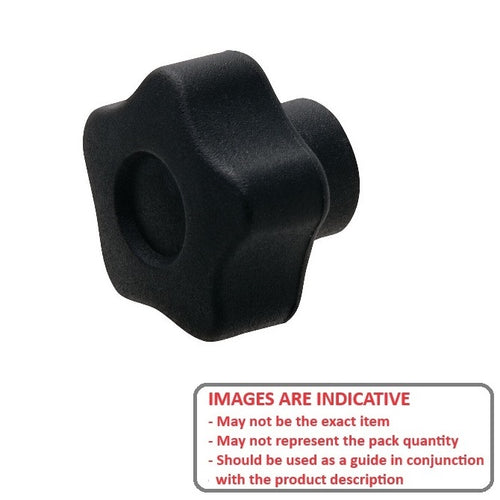

Knobs - Lobe - Five Lobe - Female - StandardStandard Female Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

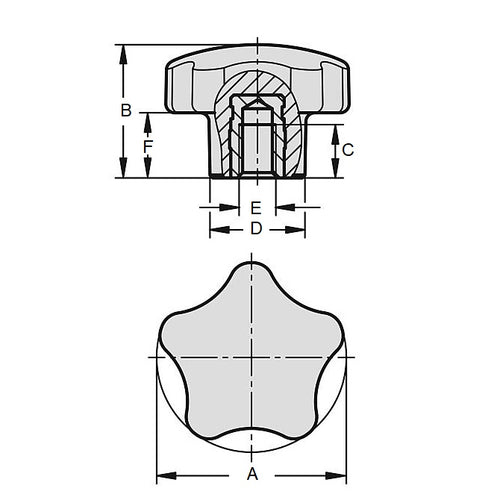

- Thread Size : 5/16-18 UNC (7.94mm)
- Head Diameter (A) 39.88 mm
- Thread Length 18.0 mm
- Colour Black
- Hub Diameter (C) 17.02 mm
- Knob Height (B) 26.92 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® KHY-130
- KHY130
