Miniature Bearings Australia
KF079C-040-3L - Datasheet
MBA
Category Information

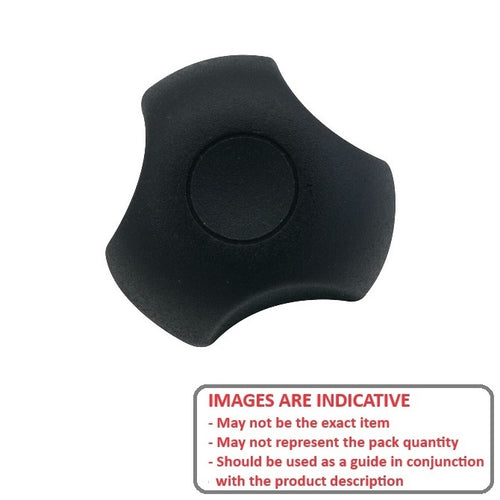

Knobs - Lobe - Three Lobe - Female - StandardStandard Female Three Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 5/16-18 UNC (7.94mm)

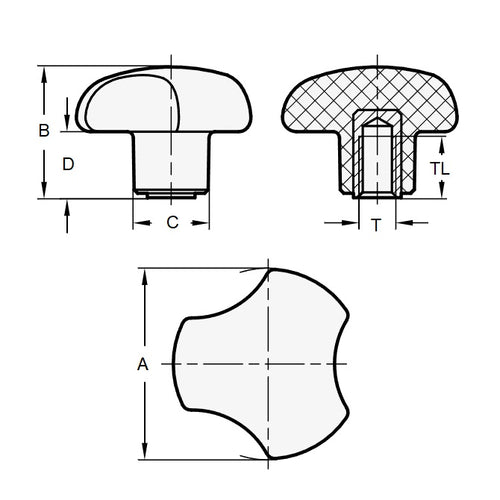

- Head Diameter (A)
39.88
mm
(Equiv. 1.57 in.) - Thread Length
14.0
mm
(Equiv. 0.551 in.) - Colour Black
- Hub Diameter (C) 16.00 mm
- Hub Length (D) 7.87 mm
- Length (B) 24.89 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- RST-116
- RST116
