KF079C-040-4L13 - Datasheet

MBA

Category Information

Knobs - Lobe - Four Lobe - Female - Standard

Standard Female Four Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 5/16-18 UNC (7.94mm)
  • Head Diameter (A) 39.88 mm
    (Equiv. 1.57 in.)
  • Thread Length 14.0 mm
    (Equiv. 0.551 in.)
  • Colour Black
  • Hub Diameter (C) 21.08 mm
  • Hub Length (D) 5.59 mm
  • Knob Height (B) 26.92 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • RST77
  • RST-77
View full details

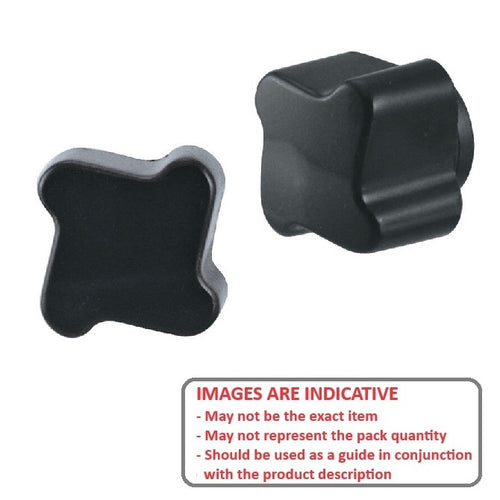

KF079C-040-4L13DiagramKF079C-040-4L13Image
